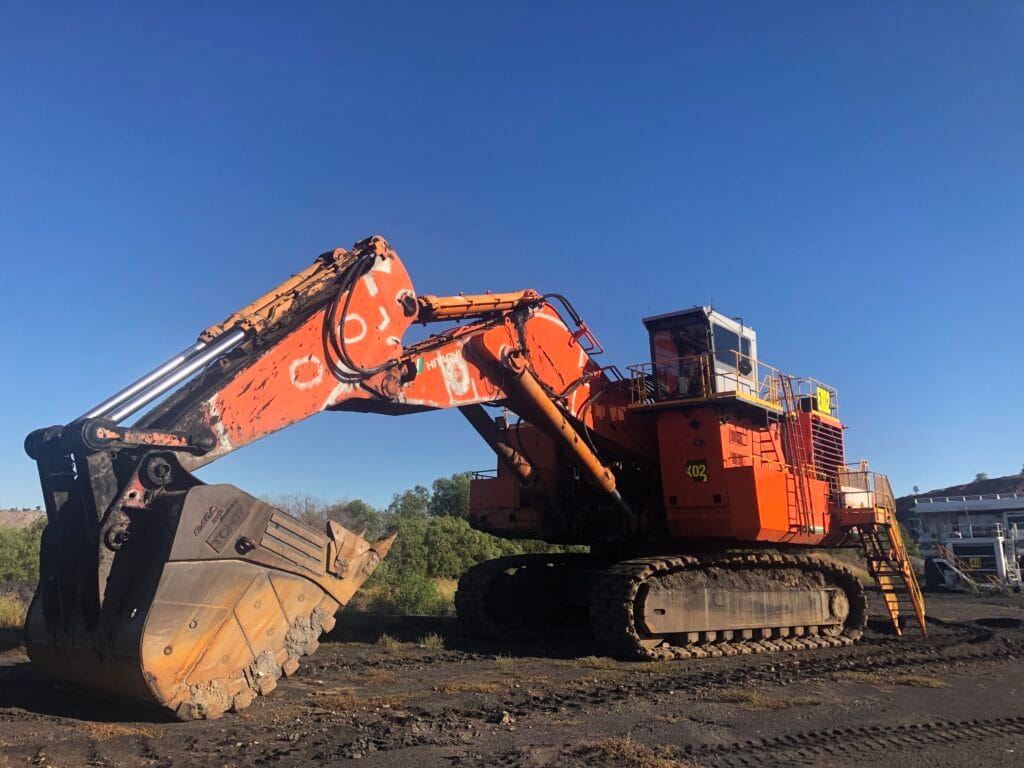

Hitachi EX3600 Mining Excavator
Information
Additional information
| Make | |
|---|---|
| Model | EX3600, EX3600-6 |
| Weight | 370t |
Equipment Overview
The Hitachi EX3600 is a 370-tonne mining excavator delivering high production performance for mid to large-scale mining operations, combining powerful excavation capability with stable and confident machine control. Available in backhoe or front-shovel configuration, it supports pass match with 140 to 220-tonne class dump trucks. A stronger, more durable mainframe disperses stress more evenly than previous models, and Hitachi’s patented, induction-hardened track shoe design mitigates premature drive-lug wear.
Power comes from a Cummins engine producing 1,450 kW (1,944 hp), with an MTU alternative also available, reducing fuel consumption by around 4% compared with the previous Dash-6 model. Bucket digging force reaches 1,166 kN, and backhoe bucket capacity ranges from 22.0 to 24.0 m³. Three genuine bucket options, Light Duty, General Purpose and Heavy Duty, suit different applications and site conditions, and the machine comes standard with Hitachi’s Global e-Service remote machine management system.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cummins diesel |
| Power Output | 1,450 kW (1,944 hp) @ 1,800 rpm |
| Max Torque | NA |
| Emission Standard | EPA Tier 4 Final |
| Transmission | Hydrostatic, individually controlled pumps |
| Drive Type | Steel track, 1,270 mm shoes |
| Operating Weight | 370,000 kg |
| Digging Depth | 8,630 mm |
| Bucket Capacity | 22.0 m³ to 24.0 m³ |
| Reach | 18,240 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | 9,000 mm |
| Height | 7,000 mm |
| Track Width | 1,270 mm |
| Tail Swing Radius | NA |
Typical Applications
- Large-scale mining excavation and loading
- Open-pit mining and quarry mass excavation
- Continuous heavy truck loading
- Ultra-high production mining operations
