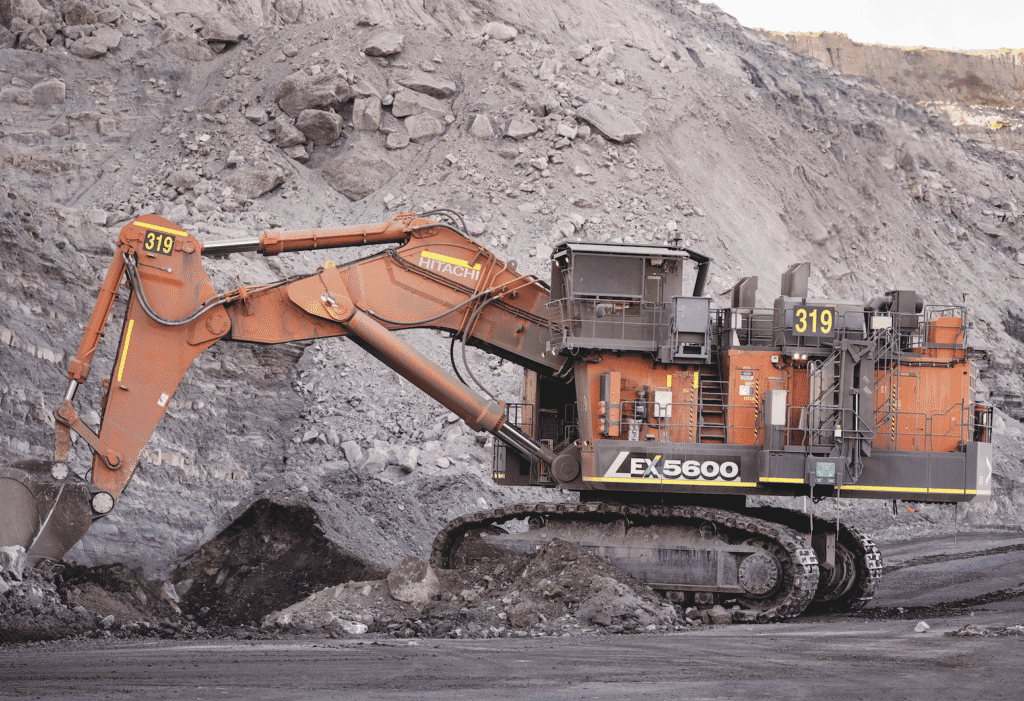

Hitachi EX5600 Mining Excavator
Information
Additional information
| Make | |
|---|---|
| Model | EX5600 |
| Weight | 549t |
Equipment Overview
The Hitachi EX5600 is a 549-tonne mining excavator built for ultra-high production in large-scale surface mining operations, including copper, iron ore and coal. It supports pass match with 180 to 290-tonne class dump trucks, and buckets equipped with the Bradken GET system and an optimised lip design extend service life and reduce downtime. Three genuine bucket options, Light Duty, General Purpose and Heavy Duty, suit different applications and site conditions, and improved pathways and railings support safer access to the machine.
Power comes from twin Cummins engines producing a combined 2,238 kW (3,000 hp), with an MTU option also available. A high-performance hydraulic system with twelve variable-displacement axial piston pumps delivers exceptional digging force and cycle efficiency. Backhoe bucket capacity ranges up to 38.5 m³, and bucket digging force reaches 1,590 kN. The EX5600 comes standard with Hitachi’s Global e-Service remote machine management system for complete fleet visibility.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Twin Cummins diesel |
| Power Output | 2 x 1,119 kW (2 x 1,500 hp) @ 1,800 rpm |
| Max Torque | NA |
| Emission Standard | EPA Tier 4 Final |
| Transmission | Hydrostatic, 12 variable-displacement piston pumps |
| Drive Type | Steel track, 1,400 mm shoes |
| Operating Weight | 549,000 kg |
| Digging Depth | 8,800 mm |
| Bucket Capacity | 34.0 m³ to 38.5 m³ |
| Reach | 20,200 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | 10,300 mm |
| Height | 8,680 mm |
| Track Width | 1,400 mm |
| Tail Swing Radius | NA |
Typical Applications
- Large-scale surface mining excavation
- Copper, iron ore and coal mining
- Continuous heavy truck loading
- Ultra-high production open-pit operations
