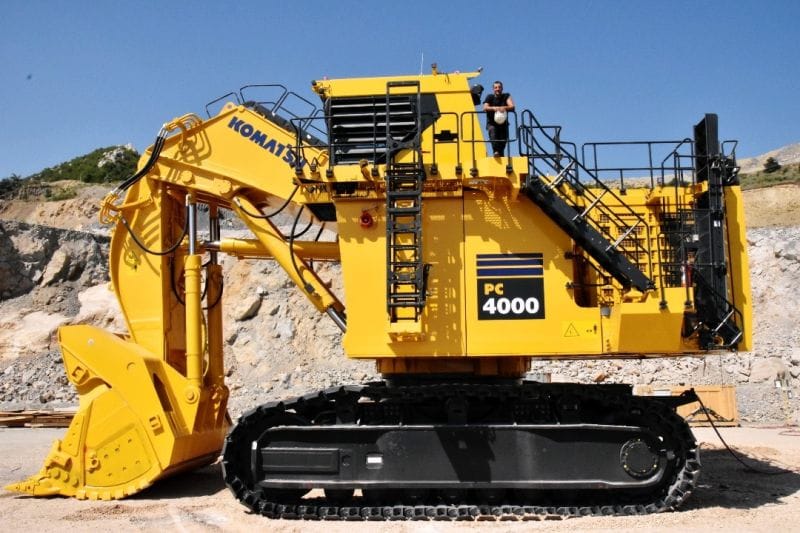

Komatsu PC4000 Mining Excavator
Information
Additional information
| Make | |
|---|---|
| Model | PC4000 |
| Weight | 400t |
Equipment Overview
The Komatsu PC4000 is a 398 to 409-tonne hydraulic mining excavator designed with input from mining organisations to minimise cost per tonne, matching trucks in the 150 to 240 US-ton class. Available in shovel or backhoe configuration with an advanced control system, it’s built for productivity and reliability in the toughest surface mining operations. Operator and worksite safety are a priority, with a 360-degree LED screen view, anti-slip gratings, easy ingress and egress, and an innovative emergency escape system meeting ISO 10262, 6394 and 10263-4 safety standards.
Power comes from a Komatsu SDA16V160E-3 engine producing 1,400 kW (1,875 hp) at 1,800 rpm, with a selective catalytic reduction system and electronic engine management keeping emission levels low; an electric drive option is also available. Bucket capacity is 22 m³ in both shovel and backhoe configuration. The Argus Payload Monitoring System weighs each bucket in real time, and the optional ProVision Machine Guidance System uses high-precision GNSS positioning for up to 1 cm accuracy while digging and loading.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Komatsu SDA16V160E-3 |
| Power Output | 1,400 kW (1,875 hp) @ 1,800 rpm |
| Max Torque | NA |
| Emission Standard | EPA Tier 4 Final |
| Transmission | Hydrostatic, 4 main pumps |
| Drive Type | Steel track, 1,500 mm shoes |
| Operating Weight | 398,000 kg to 409,000 kg |
| Digging Depth | NA |
| Bucket Capacity | 22.0 m³ |
| Reach | NA |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | NA |
| Height | NA |
| Track Width | 1,500 mm |
| Tail Swing Radius | NA |
Typical Applications
- Surface mining excavation and loading
- Large-scale open-pit operations
- Continuous heavy truck loading
- High-volume overburden removal
