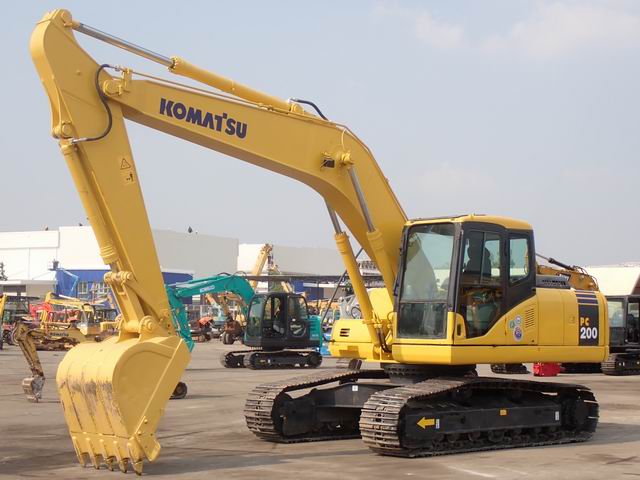

Komatsu PC200LC Medium Excavator
Information
Additional information
| Make | |
|---|---|
| Model | PC200LC, PC200LC-7, PC200LC-8, PC200LC-8M0, PC200LCI-10 |
| Weight | 20 t |
Equipment Overview
The Komatsu PC200LC is a 20 to 21.8-tonne excavator built as a workhorse for civil construction, rental fleets and general earthmoving. The long-carriage undercarriage improves lifting capacity and stability on uneven ground, making it well suited to slope work and larger trench boxes. It comes standard with KOMTRAX remote monitoring and location tracking, giving fleet managers visibility over machine location, hours and maintenance status.
Power comes from a Komatsu engine producing 110 kW (147 hp) at 2,000 rpm, driving a hydraulic system with a maximum flow of around 220 L/min for strong breakout force and fast, responsive cycle times. Bucket capacity runs from 0.66 to 1.57 yd³ (roughly 0.5 to 1.2 m³) depending on the attachment fitted, giving the machine flexibility across trenching, material handling and general digging applications.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Komatsu diesel |
| Power Output | 110 kW (147 hp) @ 2,000 rpm |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic, 2-speed travel |
| Drive Type | Steel track, 600 mm shoes |
| Operating Weight | 20,000 kg to 21,800 kg |
| Digging Depth | 6,630 mm |
| Bucket Capacity | 0.8 m³ standard |
| Reach | 9,750 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | NA |
| Height | NA |
| Track Width | 600 mm |
| Tail Swing Radius | NA |
Typical Applications
- Civil construction and general earthmoving
- Trenching and utility installation
- Slope work with large trench boxes
- Rental fleet and general contracting use
