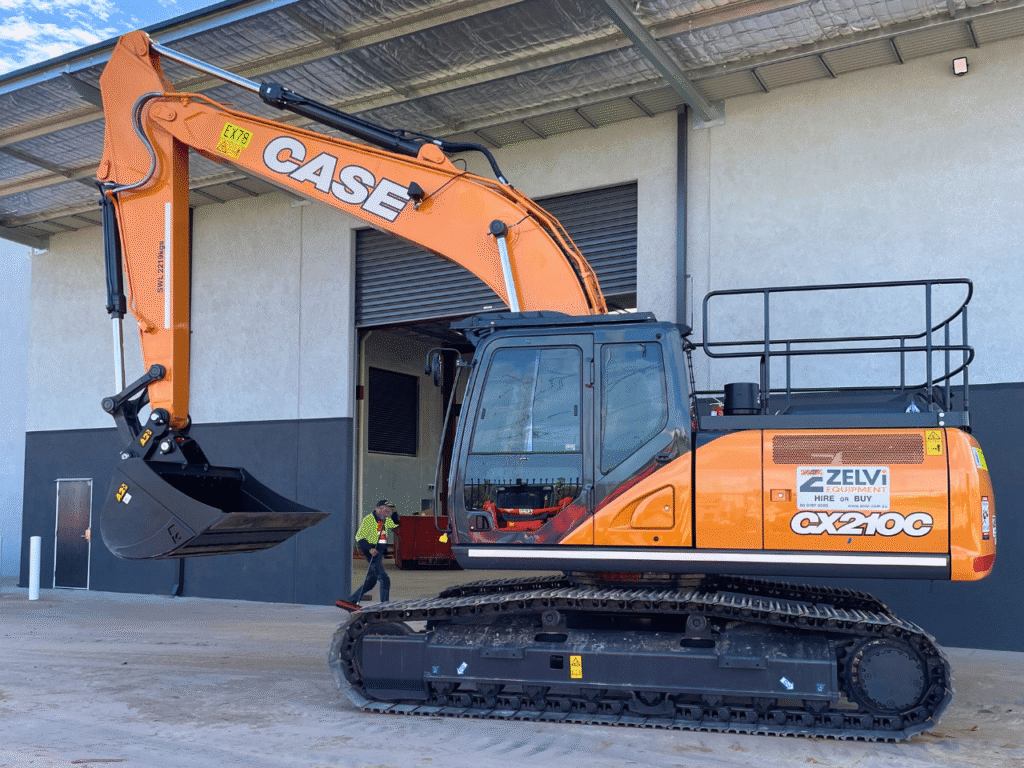

CASE CX210C Medium Excavator
Information
Additional information
| Make | |
|---|---|
| Model | CX210C |
| Weight | 22 t |
Equipment Overview
The CASE CX210C is a 21.6-tonne excavator built for high productivity and fuel efficiency across general construction, civil and mining work. The CASE Intelligent Hydraulic System delivers better breakout forces, faster cycle times and improved lift capacity over the previous B Series, and three working modes let the operator match power and speed to the application. Power-boost gives added muscle for tough digging conditions, while Boom Economy Control and Auto Economy Control trim engine speed during boom-down and idle periods to cut fuel use.
Power comes from a Tier 4 Interim engine using cooled EGR to produce 122 kW (160 hp), with quick daily service checks available from ground level and extended service intervals to maximise uptime. Swing Relief Control manages hydraulic power at the start of the swing cycle, and Spool Stroke Control automatically adjusts pressure during digging for smoother, more responsive operation.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Diesel, Tier 4 Interim |
| Power Output | 122 kW (160 hp) |
| Max Torque | NA |
| Emission Standard | EPA Tier 4 Interim |
| Transmission | Hydrostatic, 2-speed travel |
| Drive Type | Steel track |
| Operating Weight | 21,600 kg |
| Digging Depth | 6,650 mm |
| Bucket Capacity | 1.0 m³ |
| Reach | 9,240 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 9,400 mm |
| Width | 2,770 mm |
| Height | 3,070 mm |
| Track Width | NA |
| Tail Swing Radius | NA |
Typical Applications
- General construction and civil earthworks
- Mining and quarry support
- Trenching and bulk excavation
- Loading and material handling
