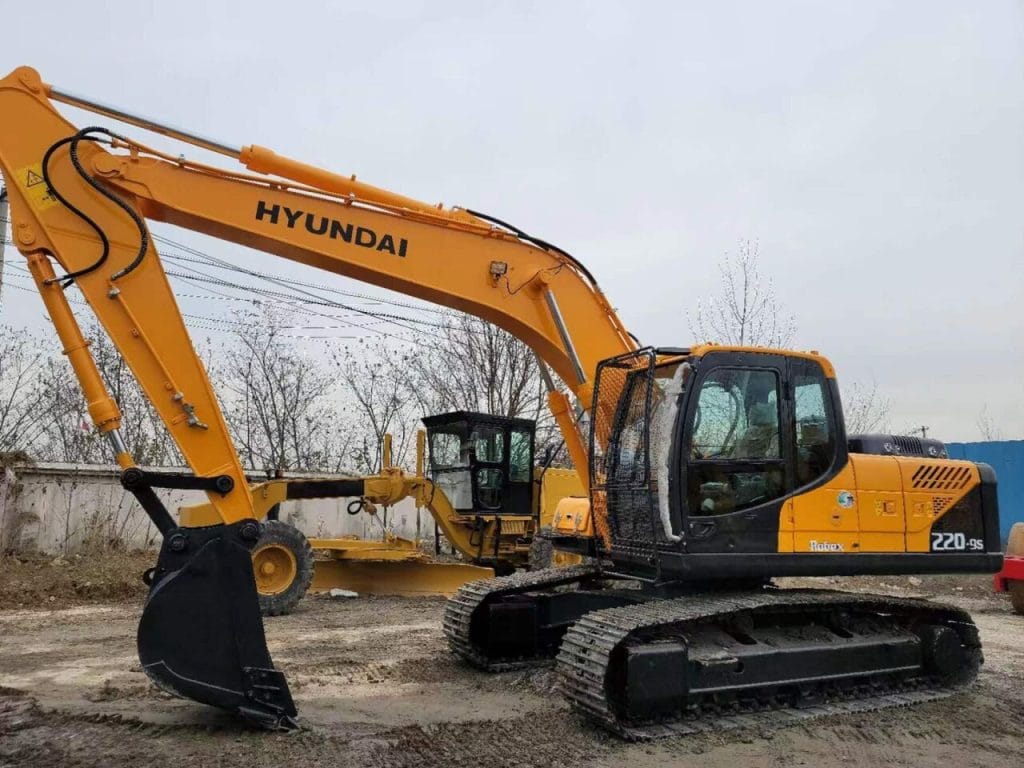

Hyundai R220 Medium Excavator
Information
Additional information
| Make | |
|---|---|
| Model | R220, R220-9 |
| Weight | 22 t |
Equipment Overview
The Hyundai R220 is a 21.9-tonne excavator built for high performance across general construction and civil works, with high stability on uneven surfaces and improved operator comfort over earlier generations. A one-piece cast control link and reinforced bucket linkages are built for high durability and strong digging forces, and arm regeneration recirculates hydraulic energy from the return line back to the pump supply line for smoother, faster arm operation.
Power comes from a Cummins 6-cylinder diesel producing around 110 kW (148 hp) gross at 2,000 rpm, with optimised fuel and lube oil consumption and low noise levels even in hot, humid or dusty conditions. Safety features include a counterbalance valve that applies hydrostatic braking to stop the machine rolling down steep slopes, and a holding valve that keeps attachments locked in place during prolonged overhanging work.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cummins, 6-cylinder diesel |
| Power Output | 110 kW (148 hp) @ 2,000 rpm |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic, 2-speed travel |
| Drive Type | Steel track, 600 mm shoes |
| Operating Weight | 21,900 kg |
| Digging Depth | 6,730 mm |
| Bucket Capacity | 0.92 m³ |
| Reach | 9,820 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 9,530 mm |
| Width | 2,800 mm |
| Height | 3,000 mm |
| Track Width | 600 mm |
| Tail Swing Radius | NA |
Typical Applications
- General construction and civil earthworks
- Trenching and utility installation
- Truck loading and material handling
- Site development on uneven terrain
