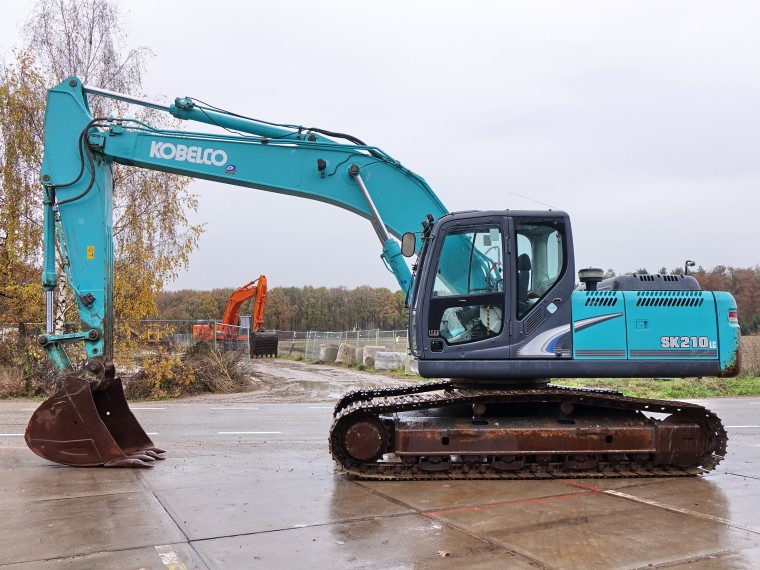

Kobelco SK210LC Medium Excavator
Information
Additional information
| Make | |
|---|---|
| Model | SK210LC, SK210LC-10, SK210LC-6 |
| Weight | 21 t |
Equipment Overview
The Kobelco SK210LC is a 21.1-tonne excavator engineered for greater efficiency, productivity and speed than the machines it replaces. Three work modes, Eco, S and H, balance high performance against economy and low fuel consumption, and Heavy Lift and Power Boost functions add extra strength for tough digging conditions. An in-cab hydraulic pressure release function lets operators change work tools or hoses easily and safely.
Power comes from a Yanmar diesel producing 119 kW (160 hp), meeting EPA Tier 4 Final emissions standards with a higher torque value of 782 Nm at 1,500 rpm than the previous generation. Bucket digging force reaches around 143 kN. Operator comfort and safety features include a high-resolution 3-sides camera system with a 10-inch monitor, a heated air-ride suspension seat, and adjustable-height joysticks.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Yanmar diesel |
| Power Output | 119 kW (160 hp) |
| Max Torque | 782 Nm @ 1,500 rpm |
| Emission Standard | EPA Tier 4 Final |
| Transmission | Hydrostatic, 2-speed travel |
| Drive Type | Steel track, 600 mm shoes |
| Operating Weight | 21,100 kg |
| Digging Depth | 7,260 mm |
| Bucket Capacity | 0.93 m³ |
| Reach | 10,340 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 9,600 mm |
| Width | 2,990 mm |
| Height | 3,060 mm |
| Track Width | 600 mm |
| Tail Swing Radius | NA |
Typical Applications
- General construction and civil earthworks
- Trenching and utility installation
- Truck loading and material handling
- Site development and bulk excavation
