Dynapac CA1500PD Padfoot Roller
Information
Additional information
| Make | |
|---|---|
| Model | CA1500PD |
| Weight | 7.3 t |
Equipment Overview

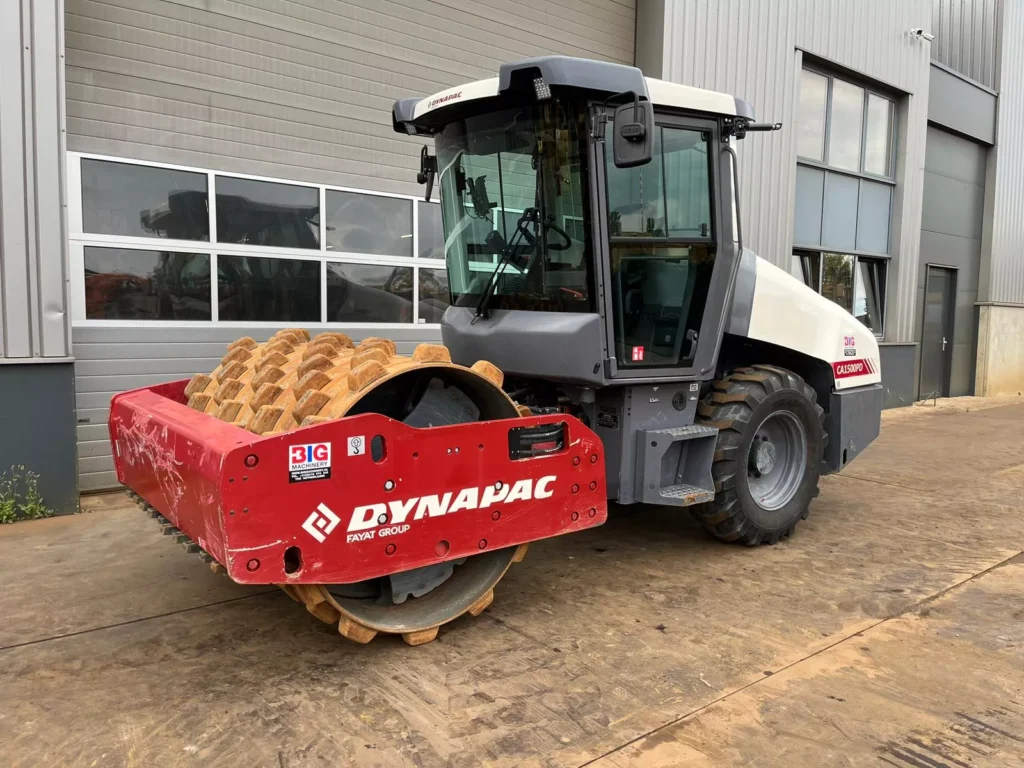

The Dynapac CA1500PD is a single drum padfoot roller built for compacting cohesive soils, with a 1,676 mm drum width. It has a standard operating weight of 7,300 kg (up to 7,700 kg maximum), suited to road construction, subbase and general earthworks.
Power comes from a Cummins QSB3.3 water-cooled turbo-diesel engine producing 99.3 hp at 2,200 rpm, meeting EU Stage IIIA / US EPA Tier 3 emissions. The vibratory system delivers up to 133 kN of centrifugal force, and the roller carries a 189-litre fuel tank, reaching a top speed of 12 km/h.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cummins QSB3.3, water-cooled turbo-diesel |
| Power Output | 99.3 hp @ 2,200 rpm |
| Max Torque | NA |
| Emission Standard | EU Stage IIIA / US EPA Tier 3 |
| Transmission | NA |
| Drive Type | NA |
| Operating Weight | 7,300 kg |
| Drum Width | 1,676 mm |
| Centrifugal Force | Up to 133 kN |
| Ballast Range | 7,300 – 7,700 kg |
Dimensions
| Dimension | Value |
|---|---|
| Length | 5,282 mm |
| Width | NA |
| Height | 2,719 mm |
| Wheelbase | 2,692 mm |
| Turning Radius | 4,877 mm (outside) |
Typical Applications
- Cohesive soil compaction on road construction sites
- Subbase and general earthworks
- Municipal and civil construction work
- Trench and utility backfill compaction
