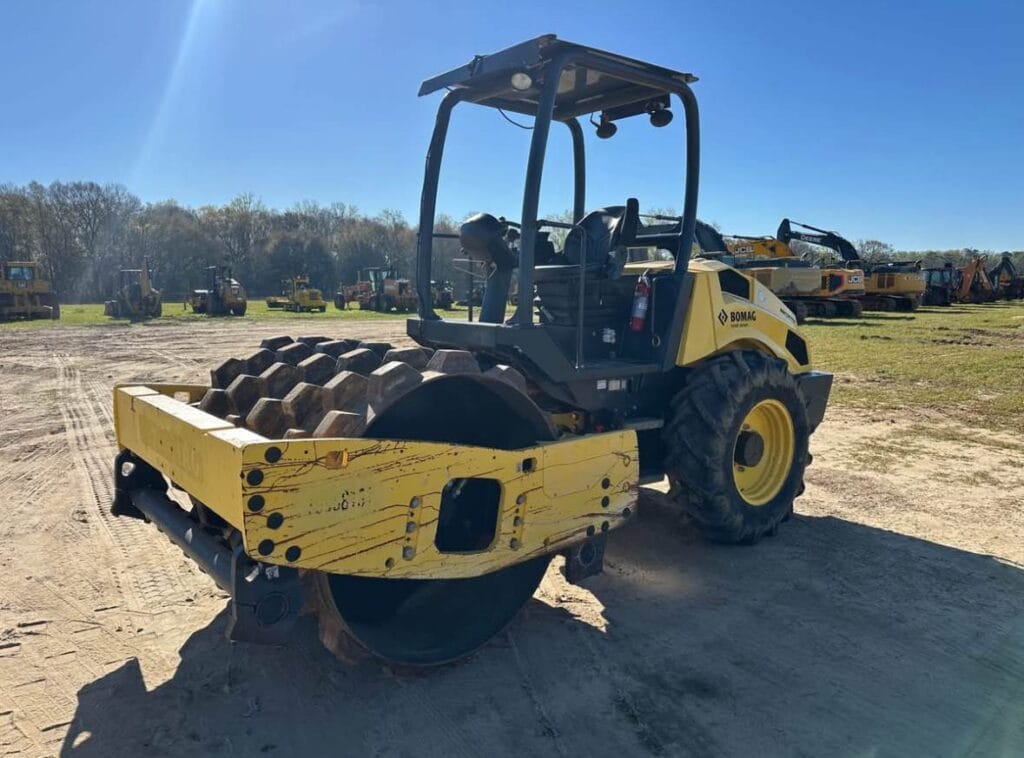

BOMAG BW177PD Padfoot Roller
Information
Additional information
| Make | |
|---|---|
| Model | BW177PD, BW177PDH-4 |
| Weight | 7 t |
Equipment Overview
The BOMAG BW177PD is a single drum padfoot roller built for compacting cohesive and high water content soils, with a 1,687 mm drum width fitted with a padfoot segment kit. It has an operating weight of 6,950 kg, suited to medium-duty earthworks and subbase work on road construction and civil engineering sites.
Power comes from a Kubota V3307 CR-T engine producing 74.3 hp at 2,400 rpm, meeting US EPA Tier 4 and EU Stage IV emissions. Drive is hydrostatic with hydrostatic oscillating articulated steering, and the exciter system runs at 29 or 32 Hz with up to 74 kN of centrifugal force. The roller reaches a top speed of 16 km/h.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Kubota V3307 CR-T, 4-cylinder water-cooled diesel |
| Power Output | 74.3 hp @ 2,400 rpm |
| Max Torque | NA |
| Emission Standard | US EPA Tier 4 / EU Stage IV |
| Transmission | Hydrostatic |
| Drive Type | Oscillating articulated, hydrostatic steering |
| Operating Weight | 6,950 kg |
| Drum Width | 1,687 mm |
| Exciter Frequency | 29 / 32 Hz |
| Centrifugal Force | Up to 74 kN |
Dimensions
| Dimension | Value |
|---|---|
| Length | 4,364 mm |
| Width | 1,689 mm |
| Height | 2,801 mm |
| Wheelbase | 2,350 mm |
| Turning Radius | NA |
Typical Applications
- Cohesive and high water content soil compaction
- Medium-duty earthworks and subbase work
- Road construction and civil engineering sites
- Landfill and embankment compaction
