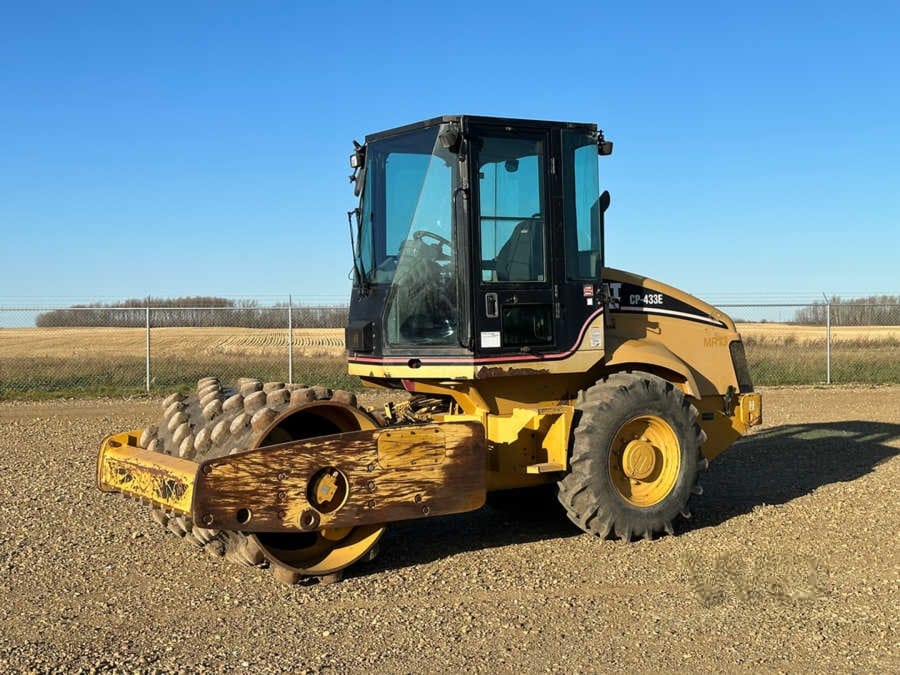

CAT CP433E Padfoot Roller
Information
Additional information
| Make | |
|---|---|
| Model | CP433E |
| Weight | 7.4 t |
Equipment Overview
The Caterpillar CP433E is a padfoot drum vibratory soil compactor with a 1,676 mm drum width fitted with 108 pads, built for cohesive soil compaction on flat or aggressive terrain. It has an operating weight of 7,390 kg, part of the 400E-Series soil compactors known for productivity, comfort and serviceability.
Power comes from a Caterpillar 3054C turbocharged engine producing 100.6 hp gross (96.6 hp net), meeting EU Stage II emissions and maintaining power at high altitudes. The exclusive dual pump propel system provides separate balanced hydraulic flow to the rear drive axle and front drum drive motor for strong gradeability and reduced spin-out in low-traction conditions. The vibratory system runs at 31.9 Hz with up to 134 kN of centrifugal force.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Caterpillar 3054C, turbocharged diesel |
| Power Output | 100.6 hp gross / 96.6 hp net |
| Max Torque | NA |
| Emission Standard | EU Stage II |
| Transmission | Hydrostatic |
| Drive Type | Dual pump propel: drum drive and rear axle |
| Operating Weight | 7,390 kg |
| Drum Width | 1,676 mm |
| Number of Pad Feet | 108 |
| Exciter Frequency | 31.9 Hz |
| Centrifugal Force | Up to 134 kN |
Dimensions
| Dimension | Value |
|---|---|
| Length | 4,963 mm |
| Width | 1,652 mm |
| Height | 2,972 mm |
| Wheelbase | 2,603 mm |
| Turning Radius | NA |
Typical Applications
- Cohesive soil compaction on flat or aggressive terrain
- Backfilling and material knockdown with optional leveling blade
- Road and residential construction
- High-altitude jobsites
