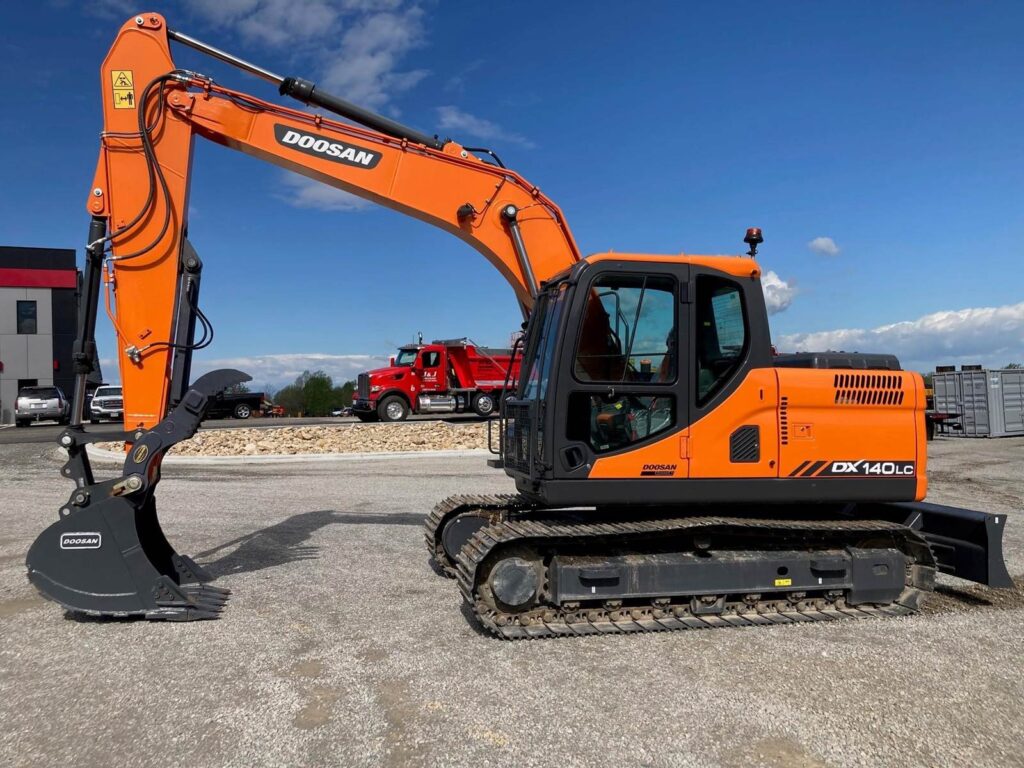

Doosan DX140LC Small Excavator
Information
Additional information
| Make | |
|---|---|
| Model | DX140LC |
| Weight | 14t |
Equipment Overview
The Doosan DX140LC is a 14.4-tonne crawler excavator built for general construction, utility installation and site preparation work. Its long undercarriage adds stability for digging and lifting, and Smart Power Control automatically matches engine output to the digging load to keep fuel consumption down without sacrificing cycle times. The machine is built around a conventional-swing design, giving it strong lift and digging performance for open-site work.
Power comes from a Develon D34 4-cylinder diesel producing 87.2 kW (117 hp) at 2,000 rpm, meeting EU Stage V emissions standards without exhaust gas recirculation, instead using increased combustion air to control particulates. Drive is through steel tracks with 600 mm shoes, and a new-generation hydraulic main valve improves the machine’s response and fuel efficiency over earlier generations.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Develon D34, 4-cylinder diesel |
| Power Output | 87.2 kW (117 hp) @ 2,000 rpm |
| Max Torque | NA |
| Emission Standard | EU Stage V |
| Transmission | Hydrostatic, 2-speed travel |
| Drive Type | Steel track, 600 mm shoes |
| Operating Weight | 14,400 kg |
| Digging Depth | 5,235 mm |
| Bucket Capacity | 0.5 m³ to 0.59 m³ |
| Reach | 7,660 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length (transport) | 7,690 mm |
| Width | 2,590 mm |
| Height (transport) | 2,640 mm |
| Track Width | 600 mm |
| Tail Swing Radius | NA |
Typical Applications
- General construction excavation
- Utility and pipeline installation
- Site preparation and bulk earthworks
- Loading and material handling
