Cormidi C50 Mini Dumper
Information
Additional information
| Make | |
|---|---|
| Model | C50 |
| Weight | 0.3t |
| Capacity | 0.5t |
Equipment Overview

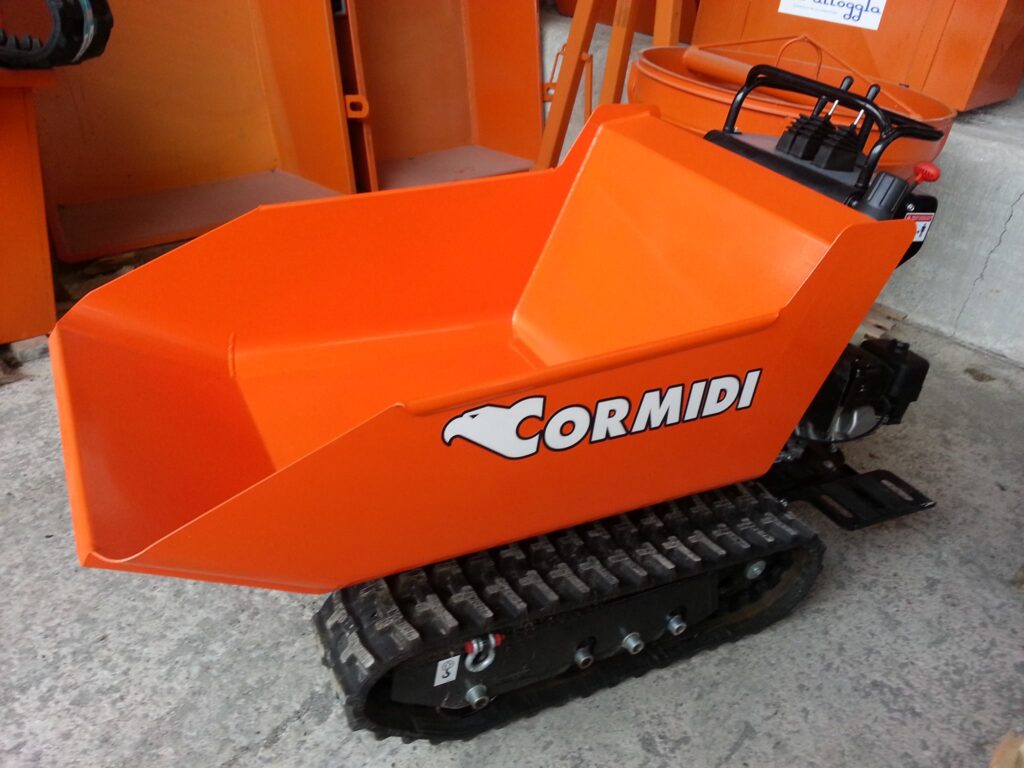

The Cormidi C50 is a mini dumper built for material handling on tight-access sites, the smallest and most compact model in Cormidi’s tracked dumper range alongside the C55, C60, and C85. It carries a 500 kg rated payload and comes with a hi-tip skip as standard, suited to landscaping, small-scale construction, and rural or farm work where a full-size dumper won’t fit.
The C50 runs on a fully hydrostatic transmission driven by two axial piston pumps, giving smooth, variable-speed control up to around 4 km/h. Rocking rollers at the middle of each track let the 700 mm-wide undercarriage ride over stones, bricks, and other debris while keeping the load stable, and the hi-tip skip reaches a discharge height of 1.43 m to clear skip bins and truck sides. At just 1,550 mm long, the C50 fits through standard doorways and garden gates.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | NA |
| Power Output | NA |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic, two axial piston pumps |
| Drive Type | Tracked, rocking rollers |
| Operating Weight (Empty) | 300 kg – 385 kg (varies by build) |
| Rated Payload | 500 kg |
| Body/Skip Capacity | NA |
| Max Travel Speed | approx. 4 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Overall Length | 1,550 mm |
| Overall Width | 700 mm |
| Overall Height | NA |
| High-Tip Discharge Height | 1,430 mm |
Typical Applications
- Landscaping and garden material transport
- Small-scale construction on restricted-access sites
- Rural and farm material handling
- Residential renovation and site clean-up
