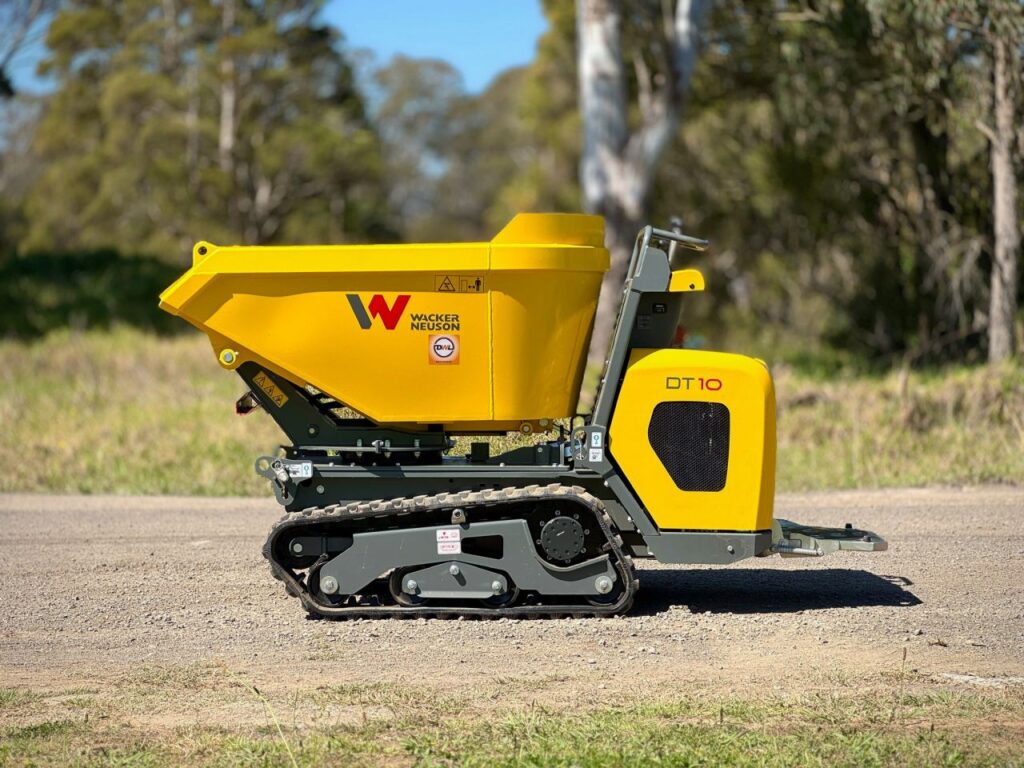

Wacker Neuson DT10 Mini Dumper

Equipment Overview

The Wacker Neuson DT10 is a mini dumper built for material handling in confined or hard-to-reach areas, sitting in Wacker Neuson’s track dumper range between the smaller DT08 and larger DT15. It carries a 1,000 kg rated payload with a 427-litre heaped skip capacity, suited to small construction sites, narrow driveways, and densely built-up areas where full-size equipment can’t work.

Power comes from a Kubota Z-482 two-cylinder diesel engine producing 9.6 kW (12.9 hp) at 3,600 rpm, driving a fully hydrostatic transmission through a variable-displacement piston pump and gear pump, with no gears to change during operation. Suspension-mounted rollers let the tracks adapt to uneven ground and absorb obstacles such as stones for a smoother ride, and the machine can climb inclines of up to 20 degrees with a theoretical gradeability of 36%. A rotary swivel-tip skip with infinitely variable 180-degree rotation places material exactly where needed, even in tight spaces.

Technical Specifications

Dimensions

Typical Applications

• Small construction sites with restricted access
• Landscaping and horticulture material transport
• Narrow driveways and densely built-up residential sites
• Golf course and turf maintenance material handling
