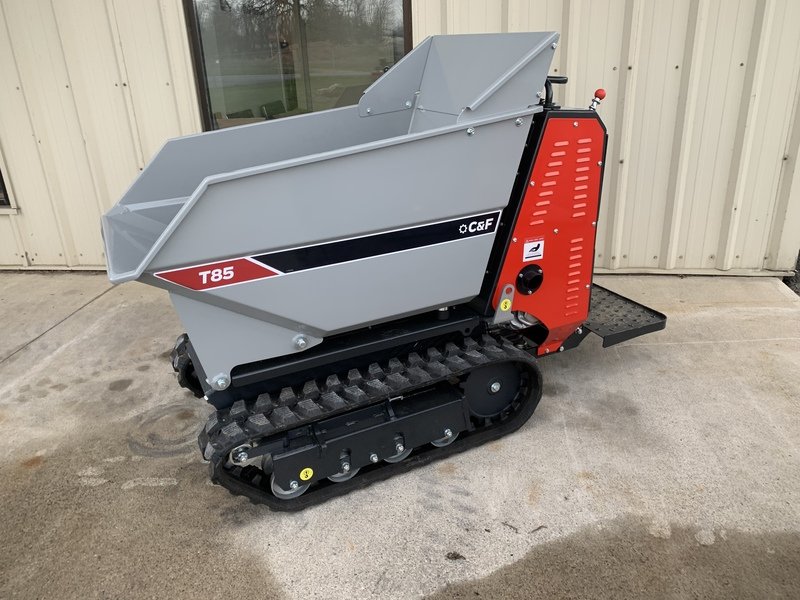

C&F Traker T85 Mini Dumper
Information
Additional information
| Make | |
|---|---|
| Model | T85, T85 HT |
| Weight | 0.5t |
| Capacity | 0.7t |
Equipment Overview
The C&F Traker T85 is a mini dumper built for material handling in confined or difficult-access sites, part of C&F’s Traker range alongside the smaller T45 and T60 and the larger T120-150. It carries a 700 kg rated payload with a 500 kg empty weight, suited to landscaping, garden and agricultural work, and construction sites where a full-size dumper can’t manoeuvre.
Power comes from a Honda GX390 petrol engine or, as an alternative, a Yanmar L100 diesel engine, driving a hydrostatic transmission through a variable-displacement pump and gear pump combination. Rubber tracks only 180 mm wide, fitted with rocking rollers and a track tensioner, keep the machine stable on slopes up to 20 degrees front and 10 degrees side while taking up minimal width. A single servo-hydraulic mono-joystick controls both travel and the high-tip skip, and the machine tops out at 5 km/h.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Honda GX390 (petrol) or Yanmar L100 (diesel) |
| Power Output | NA |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic |
| Drive Type | Tracked, rubber tracks with rocking rollers |
| Operating Weight (Empty) | 500 kg |
| Rated Payload | 700 kg |
| Body/Skip Capacity | NA |
| Max Travel Speed | 5 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Overall Length | approx. 2,200 mm |
| Overall Width | approx. 780 mm |
| Overall Height | NA |
| Track Width (Tread) | 180 mm |
Typical Applications
- Landscaping and garden material transport
- Tight-access construction and renovation sites
- Agricultural material handling
- Demolition and site clean-up in confined spaces
