Cormidi C85 Mini Dumper
Information
Additional information
| Make | |
|---|---|
| Model | C85 |
| Weight | 0.6 t |
| Capacity | 0.8 t |
Equipment Overview

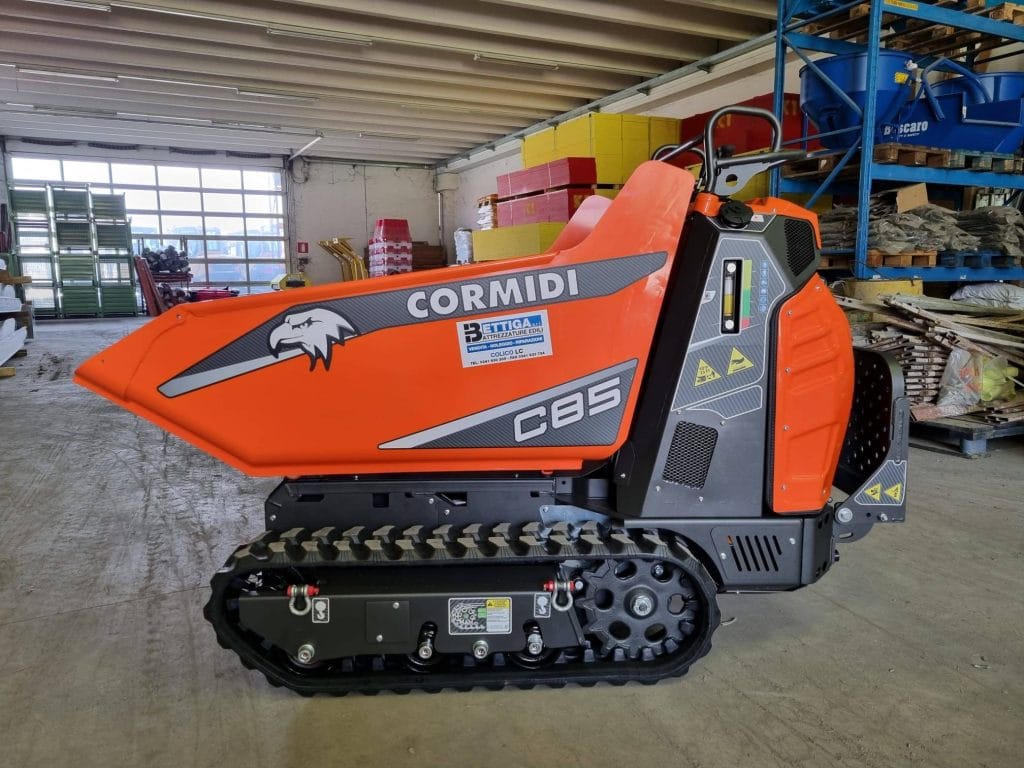

The Cormidi C85 is a mini dumper built for material handling on tight-access sites, the largest and toughest model in Cormidi’s tracked dumper range above the C50, C55, and C60. It carries an 800 kg rated payload with up to 0.36 m³ of capacity when self-loading, suited to construction, demolition clean-up, and earthmoving work where a single operator needs to shift large volumes through narrow access points.
Power comes from a Honda GX390 petrol engine rated at 13 hp (8.7 kW) or, as an alternative, a Yanmar LN100 diesel engine rated at 10 hp, both driving a fully hydrostatic transmission with no belts, chains, or pulleys to maintain. A rocking-roller undercarriage and low-wear rubber tracks give the traction to carry full loads up steep gradients without slipping, and the self-loading, high-tip skip lifts to 1.45 m at a top speed of 6 km/h. At only 1.93 m long, the C85 still fits down tight alleyways and narrow gates.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Honda GX390 (petrol) or Yanmar LN100 (diesel) |
| Power Output | 13 hp / 8.7 kW (petrol) – 10 hp (diesel) |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic |
| Drive Type | Tracked, rocking-roller undercarriage |
| Operating Weight (Empty) | 566 kg – 668 kg |
| Rated Payload | 800 kg |
| Body/Skip Capacity (Self-Loading) | 0.36 m³ |
| Max Travel Speed | 6 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Overall Length | 1.93 m |
| Overall Width | NA |
| Overall Height | NA |
| High-Tip Lift Height | 1.45 m |
Typical Applications
- Demolition and construction site clean-up
- Earthmoving and excavated material haulage
- Bulk material transport through tight alleyways and gates
- Self-loading material handling on confined sites
