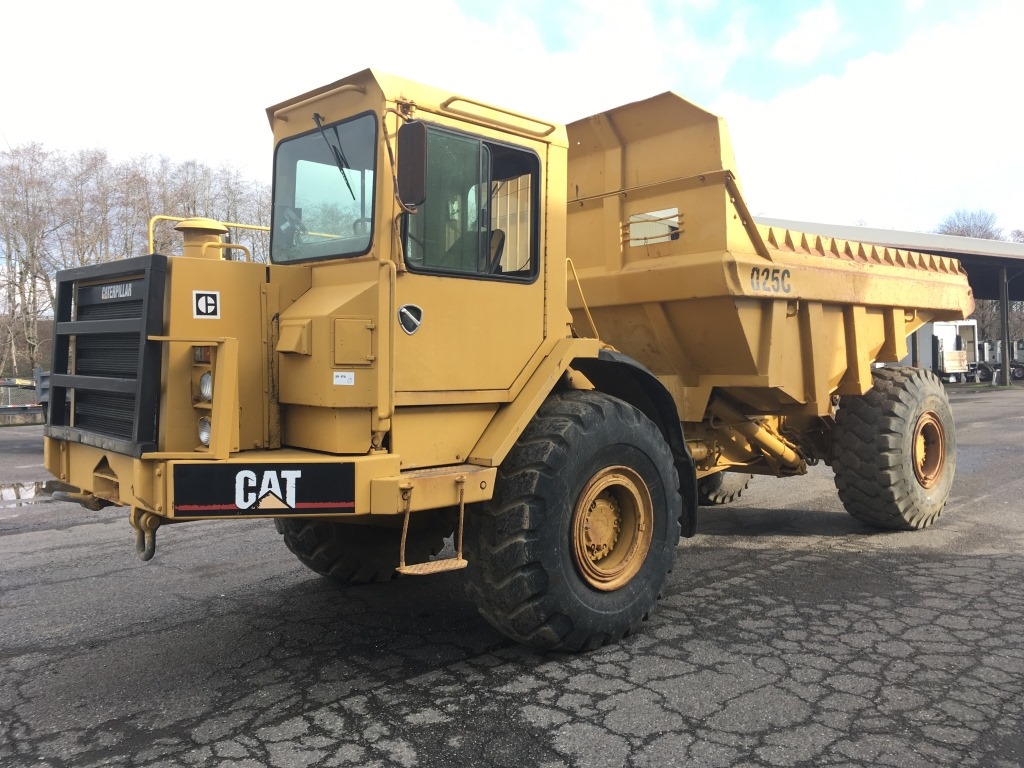

CAT D25D Articulated Dump Truck
Information
Additional information
| Make | |
|---|---|
| Model | D25D |
| Weight | 20t |
| Capacity | 23t |
Equipment Overview
The CAT D25D is an articulated dump truck built for off-road hauling across broken, uneven ground. It was one of Caterpillar’s smaller articulated trucks before the D-series line was discontinued and superseded by the current 725 range, with an approximate 19.7-tonne empty operating weight and a 14.1-m³ heaped body, suited to smaller construction and quarry sites rather than large-scale mining haulage.
Power came from a Cat 3306 engine, confirmed by Caterpillar’s own service documentation for the model, rated at approximately 194 kW (260 hp) in its final production configuration. That same documentation groups the D25D together with the similarly sized D30D and D350D, pointing to a shared platform. Three axles and six-wheel drive are standard to this class of articulated truck. Caterpillar no longer publishes technical data for the discontinued D25D, so transmission type and emission rating are not confirmed in current sourcing and are disclosed as unavailable rather than estimated.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cat 3306 |
| Power | approx. 194 kW (260 hp), final production configuration |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | NA |
| Drive Type | Three axle, six-wheel drive (6×6) |
| Operating Weight (Empty) | 19,700 kg |
| Gross Weight (Loaded) | 42,400 kg |
| Rated Payload | 22,700 kg |
| Body Capacity (Heaped) | approx. 14.1 m³ |
| Body Capacity (Struck) | approx. 10.0 m³ |
Dimensions
| Dimension | Value |
|---|---|
| Overall Length | approx. 8,760 mm |
| Overall Width | approx. 3,000 mm |
| Overall Height | approx. 3,340 mm |
| Wheelbase | approx. 4,910 mm |
| Turning Radius (SAE) | NA |
Typical Applications
- Small to mid-size construction site haulage
- Quarry face-to-stockpile hauling
- Civil earthworks on confined sites
- Rural haul roads with soft or uneven ground
