XCMG XC958 Wheel Loader
Information
Additional information
| Make | |
|---|---|
| Model | XC958 |
| Weight | 19t |
| Bucket | 3.5m3 |
Equipment Overview

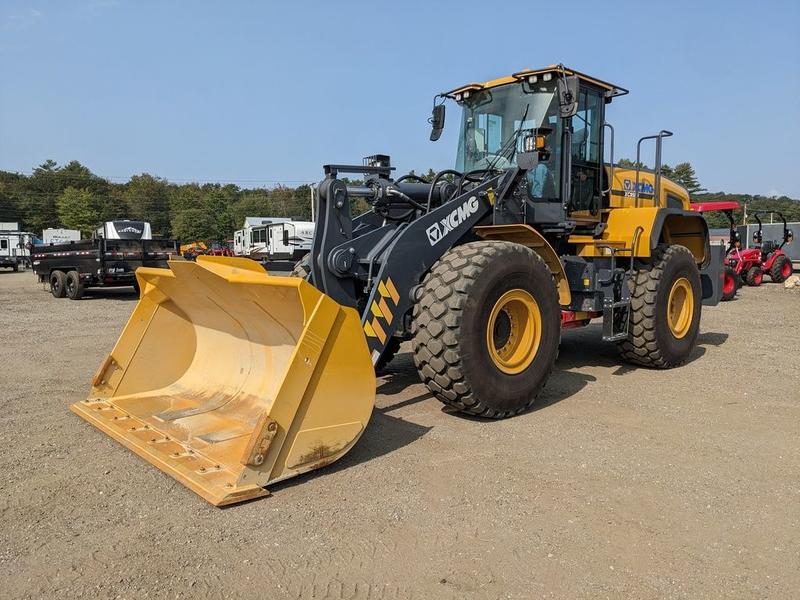

The XCMG XC958 is a wheel loader built for medium-tonnage construction and material handling work, the largest of XCMG’s XC9 series wheel loader range, current as the XC958U. It delivers 225.2 hp and an 18,509 kg operating weight, suited to a 3.5 m³ bucket capacity across demanding jobsite applications.
Power comes from a WEICHAI engine providing strong power reserve, matched to a ZF 4WG160 5-speed full-automatic transmission and a large-capacity, energy-saving twin-turbine torque converter for fast loading, unloading, and steering cycles. A load-sensing hydraulic system improves fuel economy, and a slightly pressurised, low-noise panoramic cab follows ergonomic design requirements for operator comfort.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | WEICHAI diesel |
| Power Output | 225.2 hp |
| Max Torque | NA |
| Emission Standard | Stage V |
| Transmission | ZF 4WG160, 5-speed full-automatic |
| Drive Type | 4WD, articulated frame |
| Operating Weight | 18,509 kg |
| Bucket Capacity | 3.5 m³ (range 2.5–4.5 m³) |
| Breakout Force | 17,847 kg (175 kN) |
| Static Tipping Load | NA |
| Max Travel Speed | 38 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | 8,600 mm |
| Width | 3,000 mm |
| Height | 3,505 mm |
| Wheelbase | NA |
| Turning Radius | NA |
Typical Applications
- Medium-tonnage construction work
- Truck and hopper loading
- Quarry and aggregate handling
- Pallet, clamp, and fork attachment work
