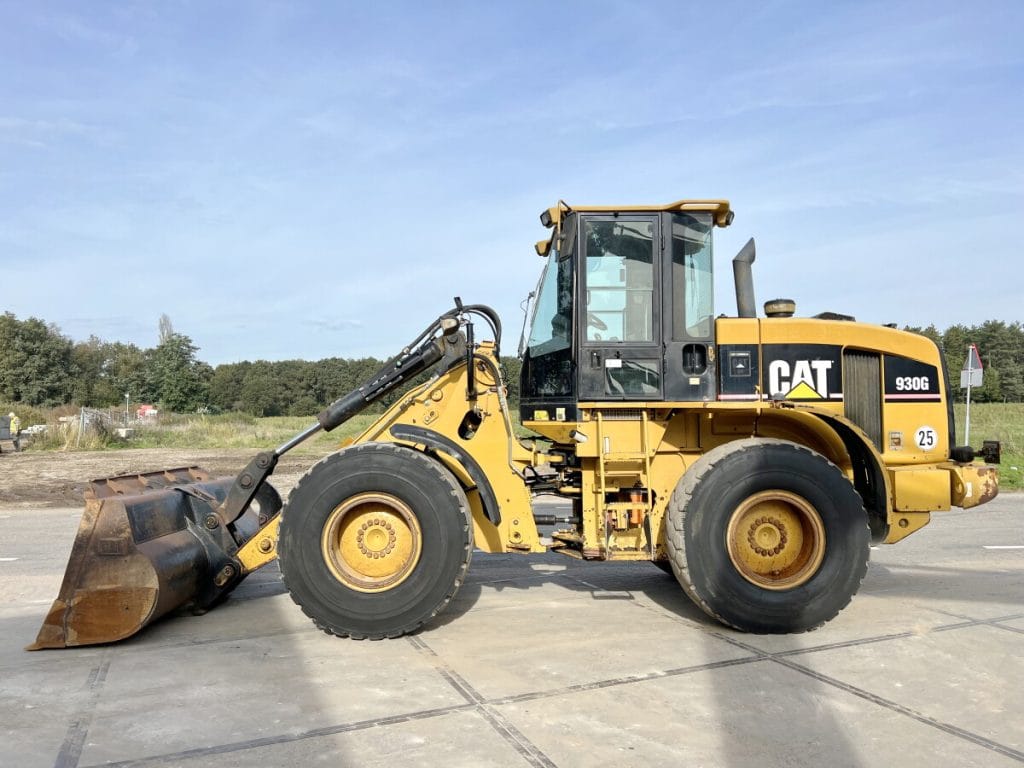

CAT 930 Wheel Loader

Information

Additional information

Make	Caterpillar
Model	930, 930K
Weight	14 t
Bucket	3.6 m3

Equipment Overview

The Cat 930 is a small wheel loader built for construction, quarry, and aggregate work, positioned above the 924 in Caterpillar’s small wheel loader range. It delivers 127 kW (170 hp) of gross power and a 14,117 kg operating weight, suited to high-production loading with an intelligent hydrostatic power train and extended 1,000-hour service intervals.

Power comes from a Cat C7.1 engine meeting Tier 4 Final/EU Stage V/Japan 2014 emission standards, delivering 824 N·m of gross torque through a hydrostatic transmission with four Hystat operator modes. Auto Wheel Torque adjusts rim pull to reduce tyre spin and wear, and Cat Payload provides real-time weighing to help hit load targets and cut fuel burn.

Technical Specifications

Specification	Value
Engine	Cat C7.1, 7.01 L
Power Output	127 kW (170 hp) gross; 123 kW (165 hp) net
Max Torque	824 N·m gross; 804 N·m net
Emission Standard	Tier 4 Final; EU Stage V; Japan 2014
Transmission	Hydrostatic, 4-speed range (up to 40 km/h)
Drive Type	4WD, front fixed and rear oscillating axles
Operating Weight	14,117 kg
Bucket Capacity	2.1–5.0 m³
Breakout Force	NA
Tipping Load (straight)	NA
Max Travel Speed	40 km/h

Dimensions

Dimension	Value
Length	7,530 mm (overall, standard lift)
Width	2,540 mm (over tyres)
Height	3,340 mm (ground to cab)
Wheelbase	3,000 mm
Turning Radius	5,402 mm (outside of tyres)
