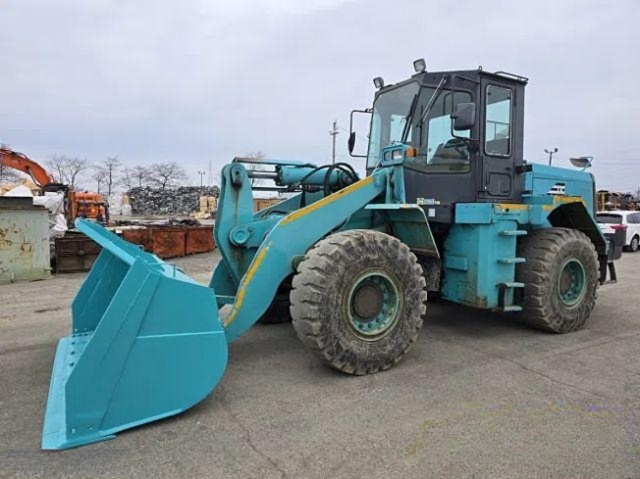

Kobelco LK270Z Wheel Loader
Information
Additional information
| Make | |
|---|---|
| Model | LK270Z |
| Weight | 18 t |
| Bucket | 3.6 m3 |
Equipment Overview
The Kobelco LK270Z is a wheel loader built for construction and quarry work, current as the LK270Z-6 in Kobelco’s Japan-market wheel loader range. It delivers 152 kW (207 PS) and a 17,750 kg operating weight, suited to a 3.6 m³ bucket capacity with strong breakout force for demanding loading work.
Power comes from a Cummins QSC8.3 turbocharged, intercooled diesel engine, delivering 880 N·m of maximum torque through a 3-element, single-stage, single-phase torque converter paired with a full powershift automatic transmission. Front and rear independent hydraulically actuated wet disc brakes handle travel braking, and a mechanical spring-actuated system covers parking, with a 290 L fuel tank supporting extended working hours.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cummins QSC8.3, turbo diesel with intercooler, 8.26 L |
| Power Output | 152 kW (207 PS) @ 2,200 rpm |
| Max Torque | 880 N·m @ 1,500 rpm |
| Emission Standard | Japan MLIT 2nd-generation emissions certified |
| Transmission | Full powershift, automatic, 3-element single-stage torque converter |
| Drive Type | 4WD, articulated frame (40° left/right) |
| Operating Weight | 17,750 kg |
| Bucket Capacity | 3.6 m³ |
| Breakout Force | 14,880 kgf (146 kN) |
| Max Drawbar Pull | 14,490 kgf (142 kN) |
| Max Travel Speed | 36.9 km/h (37.4 km/h reverse) |
Dimensions
| Dimension | Value |
|---|---|
| Length | 8,125 mm (bucket on ground) |
| Width | 2,680 mm (vehicle body) |
| Height | 3,440 mm |
| Wheelbase | 3,200 mm |
| Turning Radius | 6,425 mm (outside, bucket) |
Typical Applications
- Quarry and aggregate production
- Truck loading and stockpiling
- General construction and material handling
- Civil engineering work
