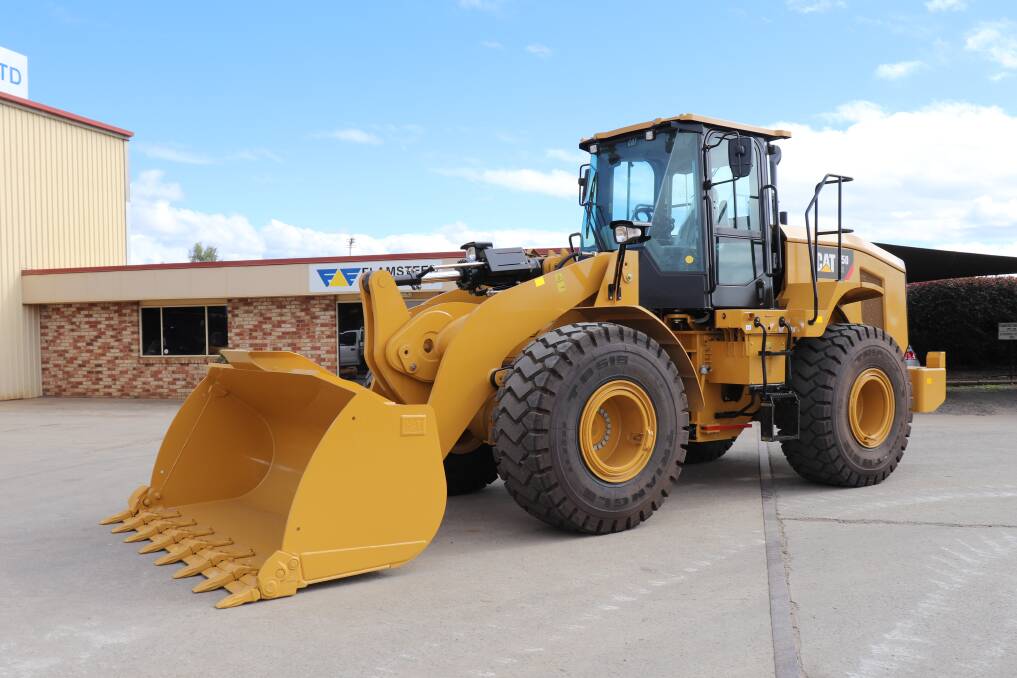

CAT 950 Wheel Loader

Information

Additional information

Make	Caterpillar
Model	950, 950GC, 950H, 950M
Weight	19 t
Bucket	3.6 m3

Equipment Overview

The Cat 950 is a medium wheel loader built for material handling, truck loading, and general construction, part of Caterpillar’s medium wheel loader range alongside the 950 GC, 962, and 966. It delivers 188 kW (253 hp) of gross power and a 19,260 kg operating weight, suited to high-production loading with Cat Payload real-time weighing and Application Profiles for one-touch machine setup.

Power comes from a Cat C7.1 engine meeting Tier 4 Final/EU Stage V/Japan 2014 emission standards, delivering 1,242 N·m of gross torque through a 5-speed powershift transmission with a top speed of 39.5 km/h. Deeply integrated engine, powertrain, and hydraulic systems deliver strong productivity and fuel efficiency, and Performance Series buckets combined with the Z-bar linkage give excellent pile penetration and high breakout forces.

Technical Specifications

Specification	Value
Engine	Cat C7.1, 7.01 L
Power Output	188 kW (253 hp) gross; 172 kW (231 hp) net
Max Torque	1,242 N·m gross; 1,170 N·m net
Emission Standard	Tier 4 Final; EU Stage V; Japan 2014
Transmission	5-speed powershift (up to 39.5 km/h)
Drive Type	4WD, front fixed and rear oscillating (±13°) axles
Operating Weight	19,260 kg
Bucket Capacity	2.7–4.4 m³
Breakout Force	18,455 kg
Static Tipping Load (straight)	11,961 kg
Max Travel Speed	39.5 km/h

Dimensions

Dimension	Value
Length	8,314 mm (shipping length, with bucket on ground)
Width	2,800 mm (over tyres, unloaded)
Height	3,456 mm (top of ROPS)
Wheelbase	3,350 mm
Turning Radius	6,014 mm (outside of tyres)
