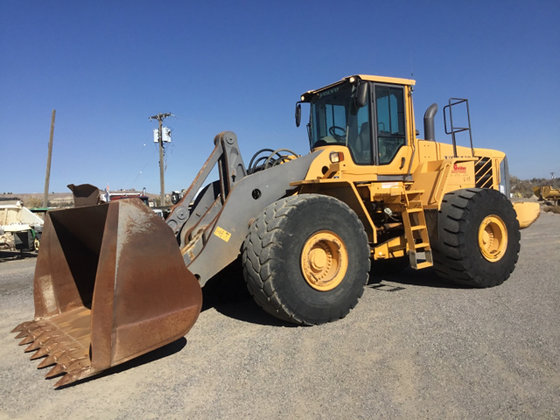

Volvo L220 Wheel Loader
Information
Additional information
| Make | |
|---|---|
| Model | L220 |
| Weight | 31 t |
| Bucket | 10.2 m3 |
Equipment Overview
The Volvo L220 is a large wheel loader built for heavy-duty material handling, positioned above the L150 in Volvo’s wheel loader range, current as the L220H. It delivers 280 kW at 1,300–1,400 rpm and a 31,200–33,100 kg operating weight, suited to demanding jobs with a 4.3–16 m³ bucket capacity.
Power comes from a Volvo D13F engine delivering 2,231 N·m of gross torque, with second-generation OptiShift and a new dry P-Brake giving up to 15% greater fuel efficiency than the former G-series. A new transmission, new converter, and revised gear ratio boost productivity by up to 10%, and OptiShift technology can reduce fuel consumption by up to 18%.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Volvo D13F |
| Power Output | 280 kW @ 1,300–1,400 rpm |
| Max Torque | 2,231 N·m gross |
| Emission Standard | NA |
| Transmission | Powershift, OptiShift |
| Drive Type | 4WD, articulated frame |
| Operating Weight | 31,200–33,100 kg |
| Bucket Capacity | 4.3–16 m³ |
| Breakout Force | 24,982 kg |
| Static Tipping Load (full turn) | 21,000 kg |
| Max Travel Speed | 38 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | 7,480 mm |
| Width | 3,150 mm |
| Height | 3,730 mm |
| Wheelbase | NA |
| Turning Radius | 7,935 mm (over bucket, standard) |
Typical Applications
- Quarry and aggregate production
- Heavy-duty truck loading
- Large-scale construction and material handling
- Rehandling and stockpile work
