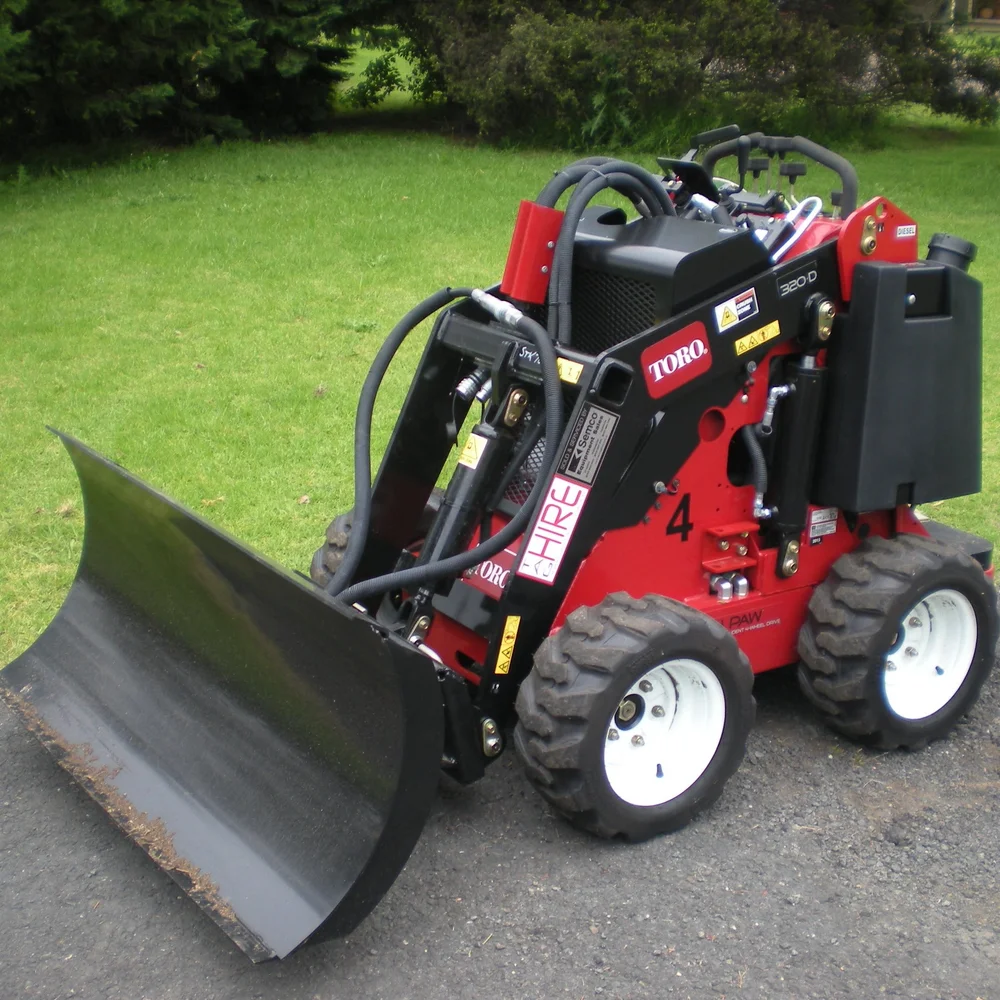

Toro 320D Mini Loader
Information
Additional information
| Make | |
|---|---|
| Model | 320D |
| Weight | 0.8 t |
| Capacity | 0.25 t |
Equipment Overview
The Toro Dingo 320-D is a wheeled compact utility loader built for landscaping and general earthmoving work, part of Toro’s Dingo wheeled loader range alongside the 323. It delivers 25 hp (18.6 kW) from a Kubota D722E3B diesel engine and a 524 lb (238 kg) rated operating capacity, suited to tight-space work on hard surfaces such as concrete and asphalt.
Power comes from a Kubota diesel engine driving four independent wheel motors through Toro’s 4-Paw all-wheel drive system, with two selectable ground speeds that direct more hydraulic power to the attachment at low speed or to the wheels at high speed. The short 28-inch wheelbase gives the 320-D zero-turn manoeuvrability, and radial loader arms keep the design compact for tight jobsites.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Kubota D722E3B, diesel, 719 cc |
| Power Output | 25 hp (18.6 kW) @ 3,600 rpm |
| Max Torque | NA |
| Emission Standard | NA |
| Drive Type | 4-Paw independent 4-wheel drive |
| Operating Weight | 781 kg |
| Rated Operating Capacity | 238 kg (1,048 lb / 475 kg tip capacity) |
| Hydraulic Flow (Auxiliary) | 40.9 L/min (high flow) |
| Max Travel Speed | 4.8 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | 2,088 mm (with bucket) |
| Width | 1,028 mm (standard tyres) |
| Height | 1,237 mm |
| Wheelbase | 711 mm |
| Turning Radius | NA |
Typical Applications
- Landscaping and garden renovation on hard surfaces
- Auguring and post-hole digging
- Trenching for irrigation and cable installation
- Tight-access residential and commercial work
