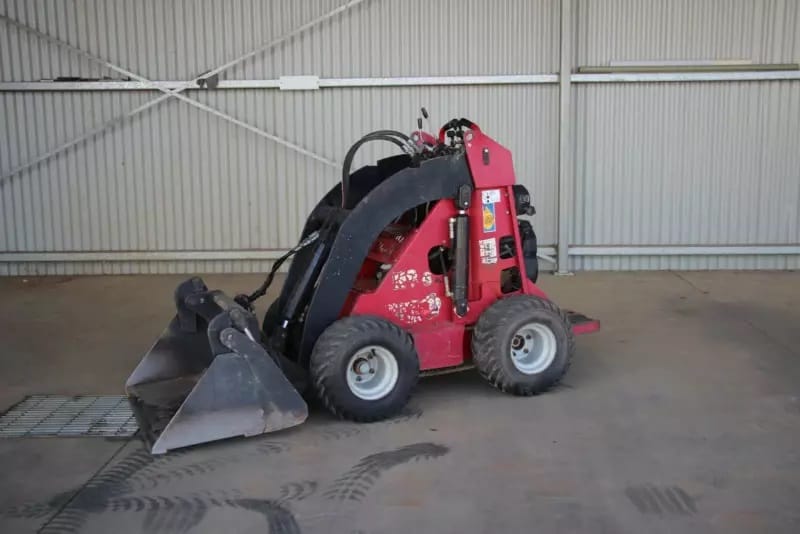

Dingo K9 Mini Loader
Information
Additional information
| Make | |
|---|---|
| Model | K9, K9-3, K9-4, K9-P |
| Weight | 0.7t |
| Capacity | 0.25t |
Equipment Overview
The Dingo K9 is a stand-on mini loader built for landscaping, utility, and general earthmoving work, part of Dingo Australia’s K9 range alongside the diesel-powered K9DW, K9DT, K9CW, K9CT, and remote-controlled K9RW. It delivers 21 hp from a Kohler EFI petrol engine and a 325 kg rated lift capacity, suited to trenching, material handling, and attachment-driven work on Australian residential and commercial sites.
Power comes from a Kohler 21 hp EFI petrol engine driving a two-pump hydraulic system rated at 47 L/min and 220 bar, with all-wheel drive through four hydraulic drive motors. The robust chassis keeps weight low over the wheels for improved traction and up to 30% more pull and push power, and an optional narrow wheel and hub set narrows the machine to 780 mm for tight-access work.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Kohler, petrol EFI, 21 hp |
| Power Output | 21 hp (23.7 hydraulic hp) |
| Max Torque | NA |
| Emission Standard | NA |
| Drive Type | All-wheel drive, 4 hydraulic drive motors |
| Operating Weight | 862 kg |
| Rated Operating Capacity | 325 kg WLL |
| Hydraulic Flow (Auxiliary) | 47 L/min @ 220 bar |
| Max Travel Speed | 7.5 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | 1,600 mm |
| Width | 780–1,040 mm (narrow/standard wheels) |
| Height | 1,200 mm |
| Wheelbase | 800 mm |
| Turning Radius | 1,300 mm (with 4-in-1 bucket) |
Typical Applications
- Residential landscaping and garden renovation
- Utility trenching for irrigation and drainage
- Post-hole digging and fencing work
- Material handling for hire and rental fleets
