Kanga PT220 Mini Loader
Information
Additional information
| Make | |
|---|---|
| Model | PT220 |
| Weight | 0.5t |
| Capacity | 0.16t |
Equipment Overview

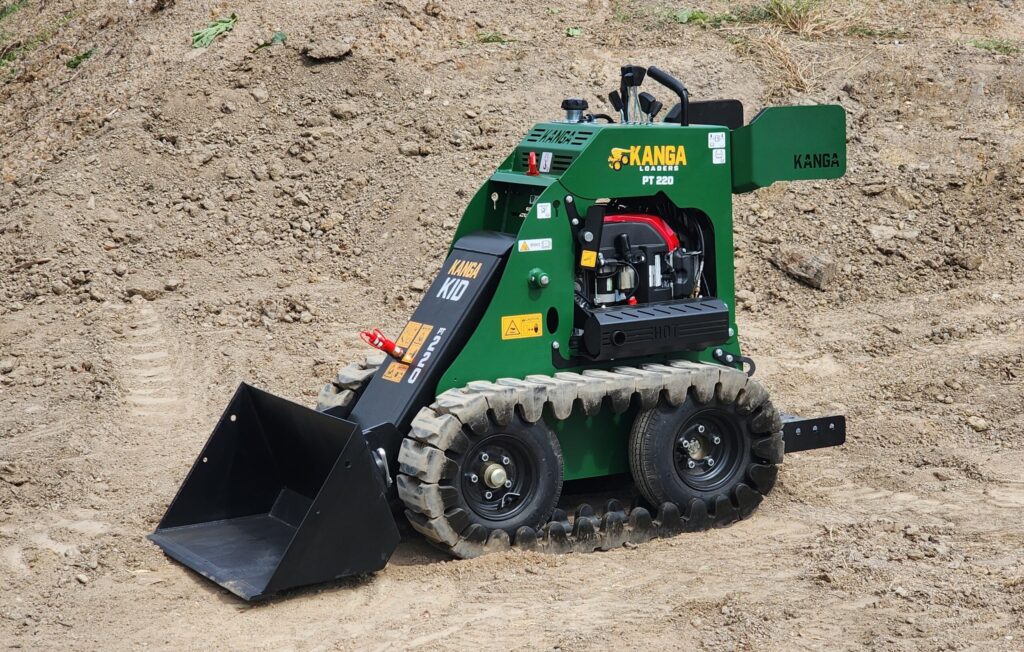

The Kanga PT220 is a stand-on mini loader built for landscaping and residential-access work, the tracked variant in Kanga’s 2 Series alongside the wheeled PW220. It delivers 20.8 hp from a Honda GXV630 petrol engine and an overall width of 790 mm, suited to narrow gates, side yards, and other tight-access residential and commercial jobs.
Power comes from a Honda GXV630 petrol engine driving a wrap-around polyurethane track system that Kanga says stays stable over undulating ground, unlike a fixed-undercarriage track design. Soft-touch controls raise the operator’s hands to reduce reach and fatigue, and the machine has a 472 kg operating weight and a 360 kg tipping load.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Honda GXV630, petrol |
| Power Output | 20.8 hp |
| Max Torque | NA |
| Emission Standard | NA |
| Drive Type | Track drive, wrap-around polyurethane track |
| Operating Weight | 472 kg |
| Rated Operating Capacity | 162 kg |
| Hydraulic Flow (Auxiliary) | NA |
| Max Travel Speed | 5.5 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | 790 mm (track) |
| Height | NA |
| Wheelbase | NA |
| Turning Radius | NA |
Typical Applications
- Narrow-access residential landscaping and pool installation
- Electrical and utility trenching in tight yards
- Builder and contractor site work through standard doorways
- Council and small commercial jobs
