Kanga PW628 Mini Loader
Information
Additional information
| Make | |
|---|---|
| Model | PW628 |
| Weight | 0.9t |
| Capacity | 0.25t |
Equipment Overview

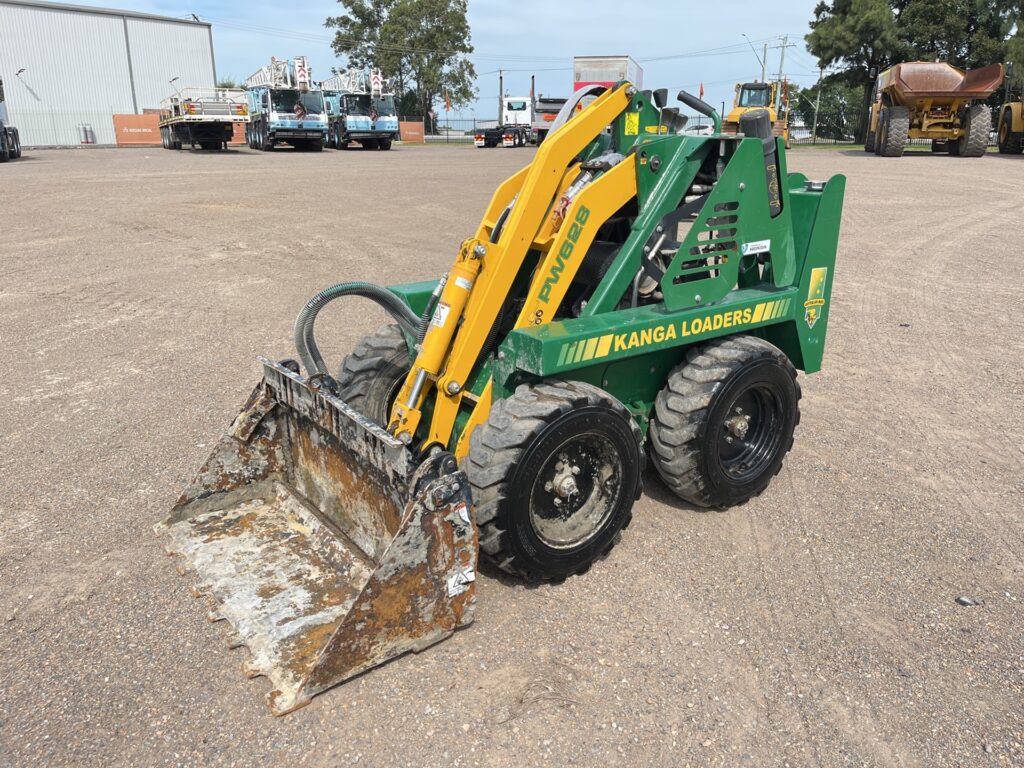

The Kanga PW628 is a stand-on mini loader built for landscaping, utility, and general earthmoving work, part of Kanga’s 6 Series range alongside the diesel-powered DW625. It delivers 28 hp (20.8 kW) from a Honda GX690 petrol engine and a 250 kg rated lift capacity, suited to trenching, material handling, and attachment-driven work on Australian sites.
Power comes from a Honda GX690 V-twin petrol engine driving four hi-torque hydraulic wheel motors, with a hydraulic system rated at 41 L/min and 207 bar. Large 23-inch water-filled tyres give the PW628 good ground clearance and traction, and the self-levelling bucket with generous roll-back helps capture a full load without spillage while travelling.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Honda GX690, V-twin petrol |
| Power Output | 20.8 kW (28 hp gross) |
| Max Torque | 48.34 N·m |
| Emission Standard | NA |
| Drive Type | All-wheel drive, 4 hi-torque hydraulic wheel motors |
| Operating Weight | 875 kg (water-filled tyres) |
| Rated Operating Capacity | 250 kg |
| Hydraulic Flow (Auxiliary) | 41 L/min @ 207 bar |
| Max Travel Speed | 7 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | 2,200 mm (with bucket) |
| Width | 1,030 mm |
| Height | 1,340 mm |
| Wheelbase | NA |
| Turning Radius | NA |
Typical Applications
- Residential and commercial landscaping
- Utility trenching and drainage installation
- Material handling on hire and rental fleets
- Attachment-driven site preparation
