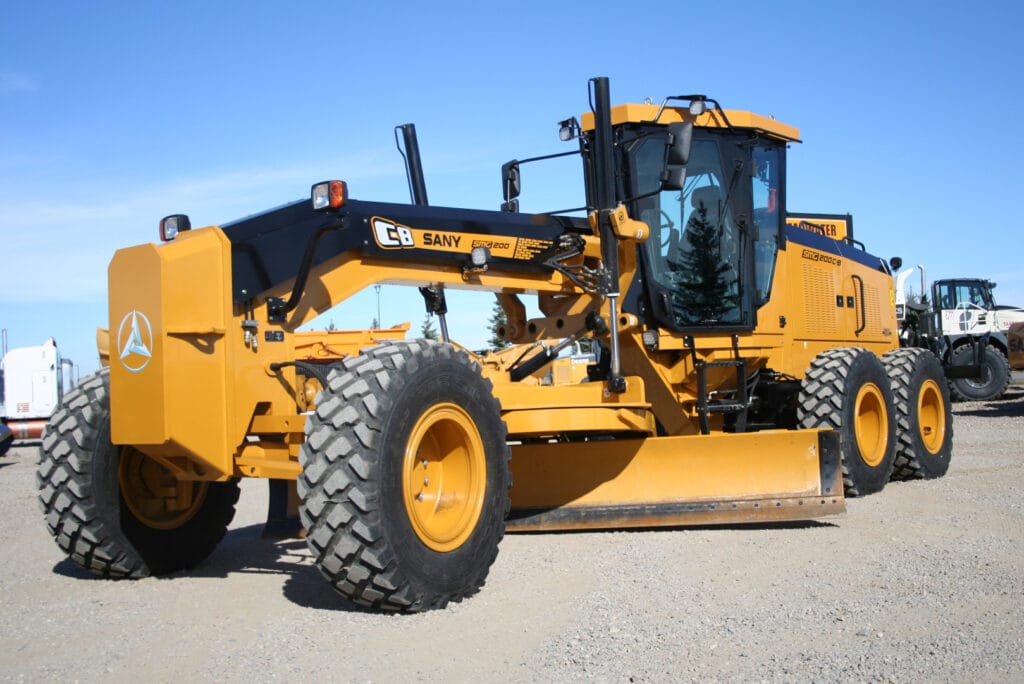

SANY SMG200 Motor Grader
Information
Additional information
| Make | |
|---|---|
| Model | SMG200, SMG200C-8 |
| Weight | 17 t |
| Blade | 12 ft |
Equipment Overview
The Sany SMG200 is a motor grader built for road construction, maintenance and civil earthworks, running a 3.7 m (12 ft) moldboard as standard with a 4.3 m (14 ft) option for wider coverage. It weighs around 16,918 kg typically equipped and produces up to 153 kW (205 hp), suited to council road work, subdivision site preparation and quarry haul road maintenance.
Power comes from a Cummins QSC8.3 engine, meeting Tier 3 emissions standards and using variable power technology to match output to load. An 8-speed direct-drive power shift transmission and hydraulically locking differentials put power down through the tandem rear axle, while a Bosch Rexroth load-sensing hydraulic system keeps blade response consistent. A sealed FOPS/ROPS cab with acoustic insulation and air-ride seating keeps the operator comfortable through a long shift.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cummins QSC8.3 |
| Power Output | 153 kW (205 hp) |
| Emission Standard | Tier 3 |
| Transmission | Direct-drive power shift, 8F/6R |
| Drive Type | Tandem rear-wheel drive, hydraulically locking differentials |
| Operating Weight | 16,918 kg (37,300 lb) |
| Moldboard Width | 3.7 m (12 ft) standard, 4.3 m (14 ft) optional |
| Max Depth of Cut | 715 mm |
| Max Lift Above Ground | 480 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | approx. 8,950 mm |
| Width | approx. 2,730 mm |
| Height | approx. 3,260 mm |
| Turning Radius | 7.4 m |
Typical Applications
- Road construction and resheeting
- Council and shire road maintenance
- Quarry and haul road upkeep
- Civil and subdivision site preparation
- Table drain and ditch maintenance
