CAT 160 / 160 AWD Motor Grader
Information
Additional information
| Make | |
|---|---|
| Model | 160, 160 AWD |
| Weight | 21 t |
| Blade | 12 ft |
Equipment Overview

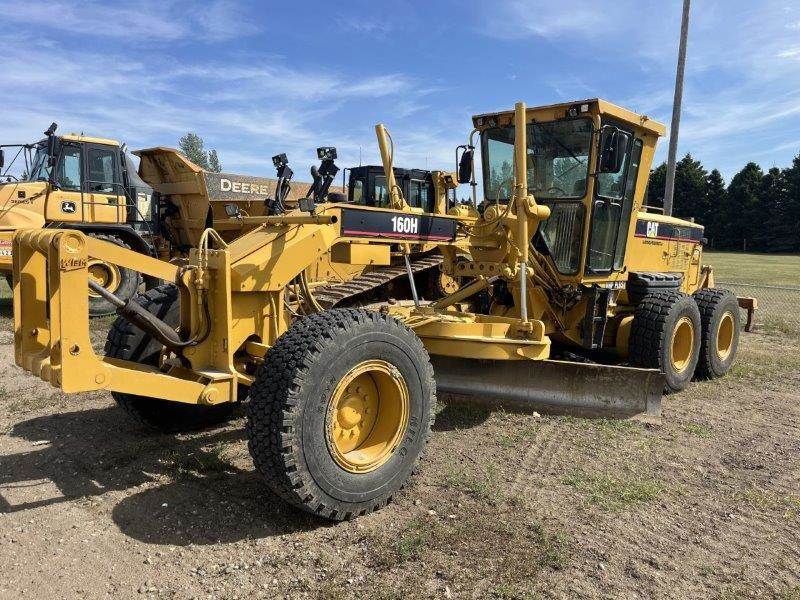

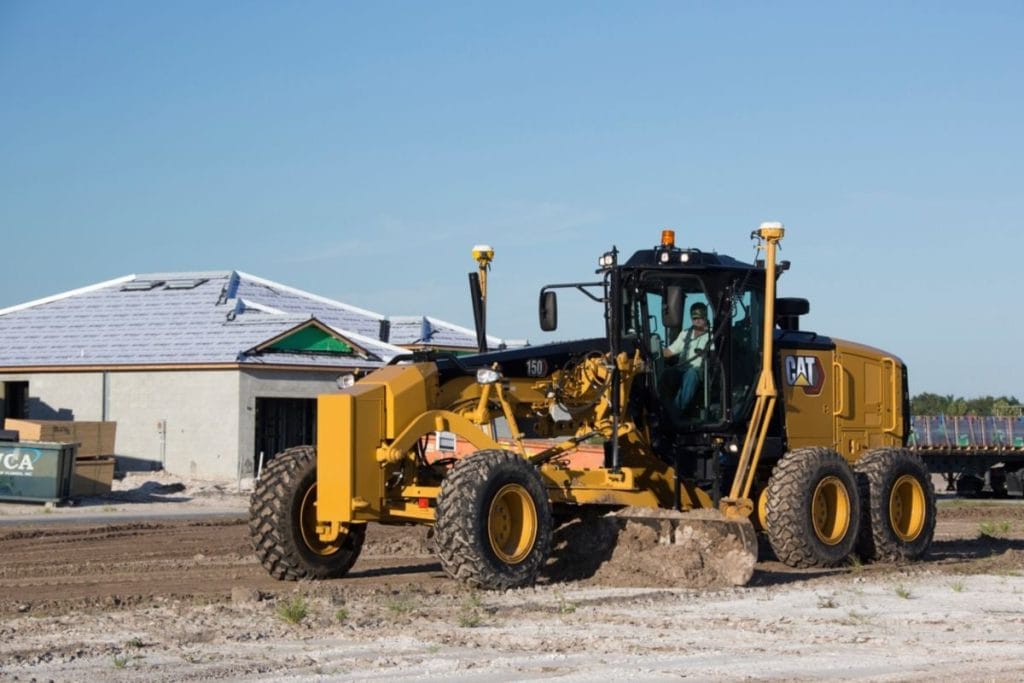

The Cat 160 is a motor grader built for road construction, maintenance and general civil grading, and is also available as the Cat 160 AWD for extra traction on soft or slippery ground. It’s the largest model in Caterpillar’s current construction grader range, running a 3.7 m (12 ft) moldboard as standard and weighing around 20,607 kg typically equipped, suited to council road work, larger subdivision sites and general construction projects.
Power comes from a Cat C9 engine, producing 159 kW (213 hp) in first gear and rising to 200 kW (268 hp) with AWD engaged, meeting Tier 3/Stage IIIA equivalent emissions. A power shift transmission and electro-hydraulic load-sensing hydraulics keep the blade responsive under load, while joystick controls with follow steer reduce hand and arm movement over a long shift.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cat C9 |
| Power Output | 159 kW (213 hp); up to 200 kW (268 hp) with AWD engaged |
| Max Torque | 1,344 N·m (AWD engaged) |
| Emission Standard | Tier 3 / Stage IIIA equivalent |
| Transmission | Power shift, direct drive, countershaft |
| Drive Type | Rear-wheel drive standard; all-wheel drive optional (160 AWD) |
| Operating Weight | 20,607 kg (45,432 lb) |
| Moldboard Width | 3.7 m (12 ft) |
| Max Depth of Cut | 750 mm |
| Max Lift Above Ground | 452 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 8,754 mm |
| Width | 2,511 mm (2,594 mm AWD) |
| Height | 3,308 mm |
| Turning Radius | 7.6 m |
Typical Applications
- Council and shire road maintenance
- Larger subdivision and civil site preparation
- Road construction and resheeting
- Building pad and access road levelling
- Table drain and ditch maintenance
