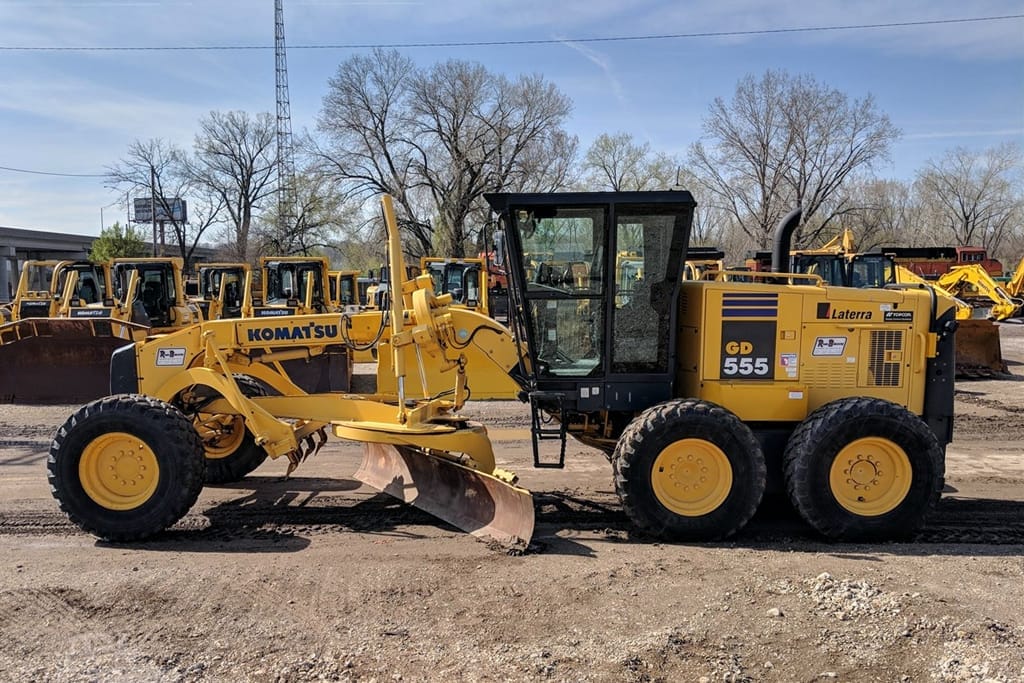

Komatsu GD555 Motor Grader
Information
Additional information
| Make | |
|---|---|
| Model | GD555, GD555-5 |
| Weight | 18 t |
| Blade | 12 ft |
Equipment Overview
The Komatsu GD555 is a motor grader built for road construction, maintenance and quarry work, part of Komatsu’s grader range alongside the larger GD655. It runs a 3.71 m (12 ft) moldboard as standard, weighs around 18,120 kg typically equipped, and produces up to 144 kW (193 hp), suited to council road work, civil earthworks and haul road maintenance on quarry and mine sites.
Power comes from a Komatsu SAA6D107E-1 engine, meeting Tier 3/Stage 3A emissions standards. Komatsu’s dual-mode transmission lets the operator switch between full power shift and a lock-up torque converter, giving smooth low-speed control for fine grading or stronger tractive effort for heavier work. A hydraulic reversing cooling fan and ground-level refuelling keep servicing straightforward, and the hexagonal cab is built for a clear view of the blade.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Komatsu SAA6D107E-1 |
| Power Output | 144 kW (193 hp) net |
| Max Torque | 880 N·m |
| Emission Standard | Tier 3 / Stage 3A |
| Transmission | Dual-mode full power shift with lock-up torque converter, 8F/4R |
| Drive Type | Tandem rear-wheel drive |
| Operating Weight | 18,120 kg (39,947 lb) |
| Moldboard Width | 3.71 m (12 ft) |
| Max Depth of Cut | 615 mm |
| Max Lift Above Ground | 480 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 10,365 mm |
| Width | 2,490 mm |
| Height | 3,200 mm |
| Turning Radius | 7.3 m |
Typical Applications
- Road construction and resheeting
- Council and shire road maintenance
- Quarry and mine haul road upkeep
- Civil and subdivision site preparation
- Table drain and ditch maintenance
