John Deere 672 Motor Grader
Information
Additional information
| Make | |
|---|---|
| Model | 672, 672G, 672GP |
| Weight | 20t |
| Blade | 12ft |
Equipment Overview

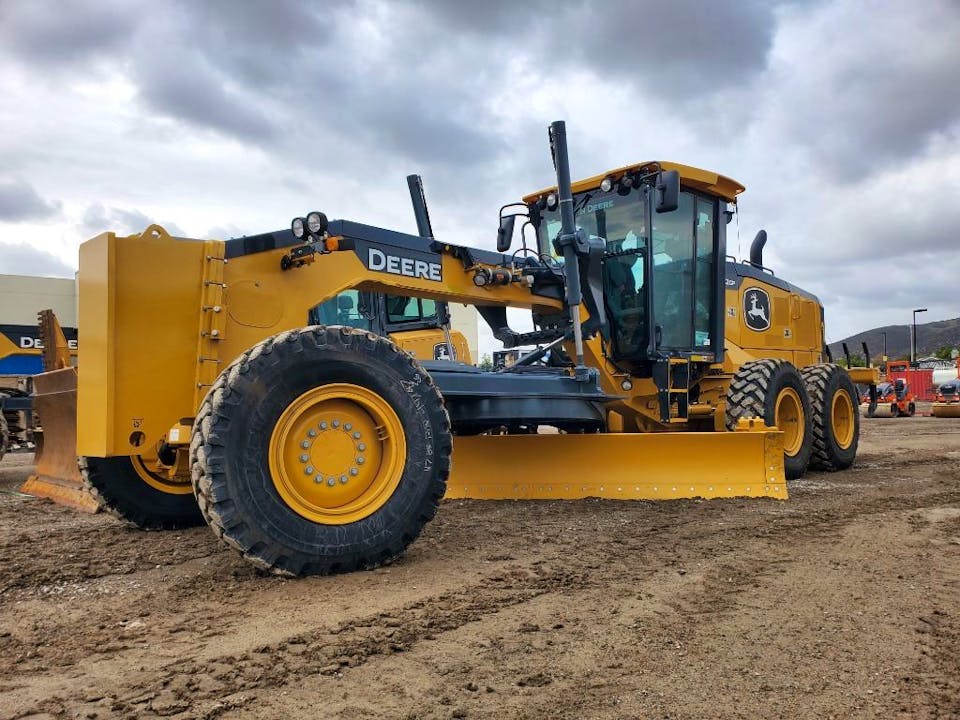

The John Deere 672 is a six-wheel-drive motor grader built for road construction, maintenance and general civil grading, part of Deere’s G-Series grader line-up. It weighs around 19,976 kg typically equipped and produces up to 190 kW (255 hp), with a dual-path hydrostatic 6WD system for extra traction, suited to council road work, rural access tracks and general construction sites.
Power comes from a John Deere PowerTech PSS 9.0 L six-cylinder turbocharged engine, delivering peak torque of 1,292 N·m with a 54 percent torque rise. Six-wheel drive can be adjusted on the fly and switched to Precision Mode for consistent tractive effort in changing soil conditions, while fingertip or joystick controls keep operator inputs light through a long shift.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | John Deere PowerTech PSS 9.0 L |
| Power Output | 190 kW (255 hp) |
| Max Torque | 1,292 N·m |
| Transmission | Power shift |
| Drive Type | Six-wheel drive, dual-path hydrostatic |
| Operating Weight | 19,976 kg (44,040 lb) |
| Blade Pull | 22,453 kg (49,500 lb) |
| Torque Rise | 54% |
Dimensions
| Dimension | Value |
|---|---|
| Length | 8,890 mm |
| Width | 2,640 mm |
| Height | 3,180 mm |
Typical Applications
- Council and shire road maintenance
- Rural and unsealed access road upkeep
- Subdivision and civil site preparation
- Building pad and driveway grading
- Table drain and ditch maintenance
