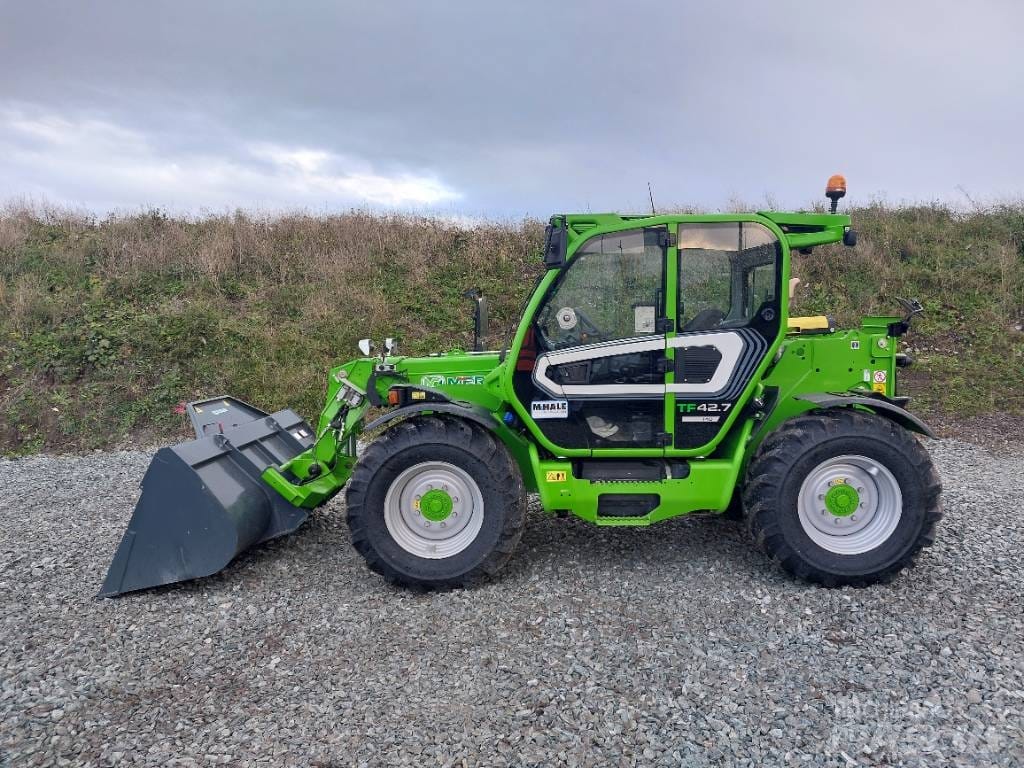

Merlo TF42.7 Telehandler
Information
Additional information
| Make | |
|---|---|
| Model | TF42.7, TF42.7-100, TF42.7-115 |
| Weight | 7.4 t |
| Capacity | 4.2 t |
Equipment Overview
The Merlo TF42.7 is a diesel telehandler built for industrial and agricultural site work, part of Merlo’s Turbofarmer range. It has a rated capacity of 4,200 kg and a maximum lift height of 7.2 m, with a maximum forward reach of 3.8 m.
The engine is a turbocharged diesel unit available as a Deutz (140 hp / 104 kW) or Perkins (100 kW) depending on model year, driving a hydrostatic transmission with four-wheel drive and three steering modes. The side-mounted engine and low pivot boom design give the operator a clear, unobstructed view of the worksite and the boom’s full range of movement.
Technical Specifications
| Specification | Value |
|---|---|
| Engine / Power Source | Turbocharged diesel: Deutz (140 hp / 104 kW) or Perkins (100 kW), depending on model year |
| Power Output | 104 kW (140 hp, Deutz) or 100 kW (Perkins) |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic, 3 steering modes |
| Drive Type | 4WD, seated operator |
| Operating Weight | 7,440 kg |
| Lift Capacity | 4,200 kg |
| Max Lift Height | 7.2 m |
| Max Forward Reach | 3.8 m |
Dimensions
| Dimension | Value |
|---|---|
| Length | 4.47 m |
| Width | 2.44 m |
| Height | 2.59 m |
| Wheelbase | NA |
| Turning Radius | NA |
Typical Applications
- Agricultural material handling (bales, feed, litter)
- Industrial yard and warehouse loading
- General construction site material handling
- Attachment work: buckets, bale clamps and litter loaders
