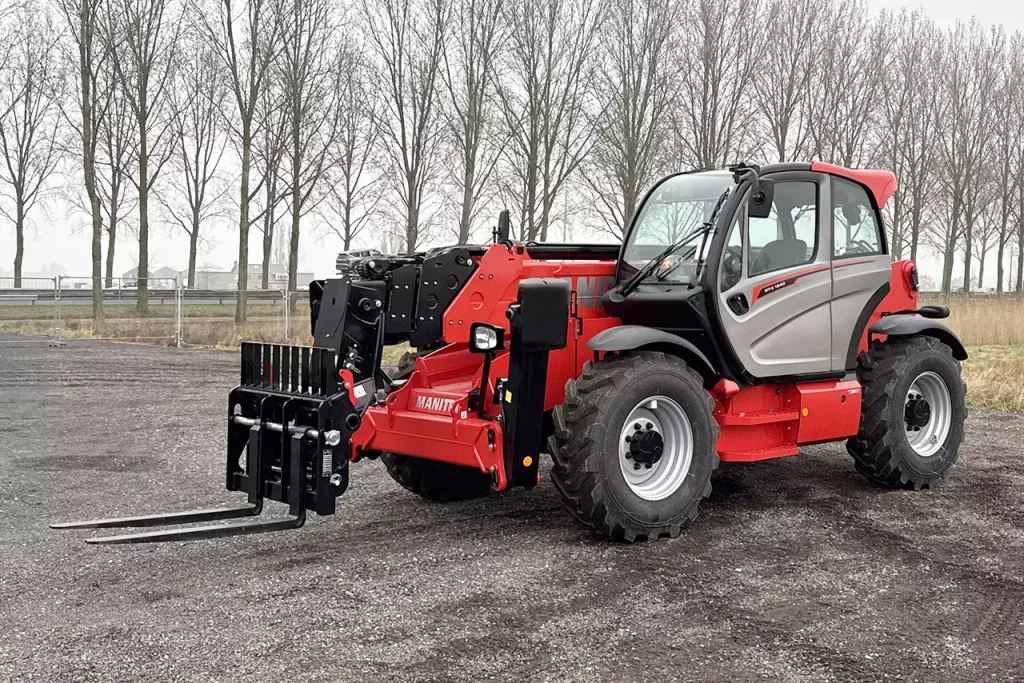

Manitou MT-X 1840 Telehandler
Information
Additional information
| Make | |
|---|---|
| Model | MT-X 1840 |
| Weight | 12 t |
| Capacity | 4 t |
Equipment Overview
The Manitou MT-X 1840 is a diesel telehandler built for sites requiring work at significant height, part of Manitou’s MT-X construction range alongside the MT-X 1440. It has a rated capacity of 4,000 kg and a maximum lift height of 17.55 m, with a maximum reach of 13.08 m.
Power comes from a Perkins 1104D-44TA four-cylinder diesel engine producing 101 hp (74.5 kW), with 400 N·m of torque at 1,400 rpm, meeting Stage 3A emissions standards. Drive runs through a torque converter transmission with 4 forward and 4 reverse gears, and outriggers combined with a frame-levelling system give enhanced stability when placing loads at height on uneven terrain.
Technical Specifications
| Specification | Value |
|---|---|
| Engine / Power Source | Perkins 1104D-44TA, 4-cylinder diesel, 4,400 cc |
| Power Output | 101 hp (74.5 kW) |
| Max Torque | 400 N·m @ 1,400 rpm |
| Emission Standard | Stage 3A |
| Transmission | Torque converter, 4 forward / 4 reverse gears |
| Drive Type | 4WD, seated operator |
| Operating Weight | 11,600 kg |
| Lift Capacity | 4,000 kg |
| Max Lift Height | 17.55 m |
| Max Forward Reach | 13.08 m |
Dimensions
| Dimension | Value |
|---|---|
| Length (fork carriage) | 6.27 m |
| Width | 2.42 m |
| Height | 2.45 m |
| Wheelbase | 3.07 m |
| Turning Radius | 4.01 m |
Typical Applications
- High-rise construction and building work
- Roofing, cladding and upper-floor material placement
- Industrial site material handling at significant height
- Large-scale construction freight and load placement
