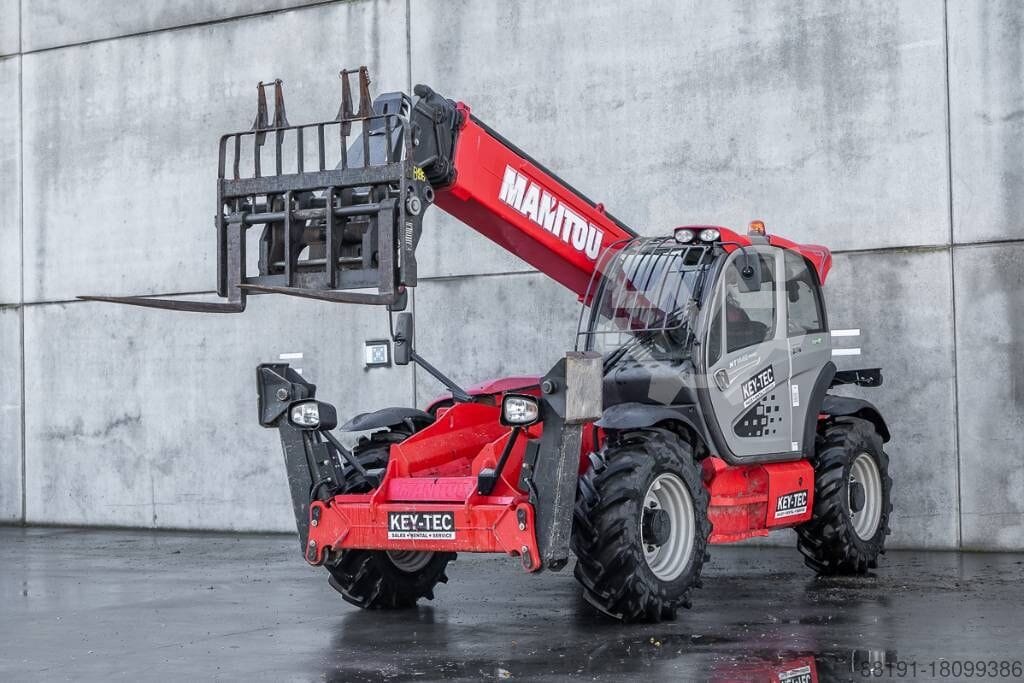

Manitou MT-X 1440 Telehandler
Information
Additional information
| Make | |
|---|---|
| Model | MT-X 1440 |
| Capacity | 4t |
| Weight | 11t |
Equipment Overview
The Manitou MT-X 1440 is a diesel telehandler built for sites requiring increased lift height, part of Manitou’s MT-X construction range alongside the MT-X 1840. It has a rated capacity of 4,000 kg and a maximum lift height of 13.53 m, with a maximum reach of 9.46 m.
Power comes from a Perkins four-cylinder diesel engine producing 101 hp (74.5 kW), with 400 N·m of torque at 1,400 rpm, meeting Stage 3A emissions standards. Drive runs through a torque converter transmission with 4 forward and 4 reverse gears, and broad outriggers combined with a frame-levelling system give excellent lateral and front stability when lifting loads at height.
Technical Specifications
| Specification | Value |
|---|---|
| Engine / Power Source | Perkins 4-cylinder diesel, 4,400 cc |
| Power Output | 101 hp (74.5 kW) |
| Max Torque | 400 N·m @ 1,400 rpm |
| Emission Standard | Stage 3A |
| Transmission | Torque converter, 4 forward / 4 reverse gears |
| Drive Type | 4WD, seated operator |
| Operating Weight | 11,115 kg |
| Lift Capacity | 4,000 kg |
| Max Lift Height | 13.53 m |
| Max Forward Reach | 9.46 m |
Dimensions
| Dimension | Value |
|---|---|
| Length (fork carriage) | 6.13 m |
| Width | 2.35 m |
| Height | 2.45 m |
| Wheelbase | 3.07 m |
| Turning Radius | 3.97 m |
Typical Applications
- High-reach construction and building work
- Placing materials on scaffolding, rooftops or upper floors
- Industrial site material handling at height
- General construction freight and load placement
