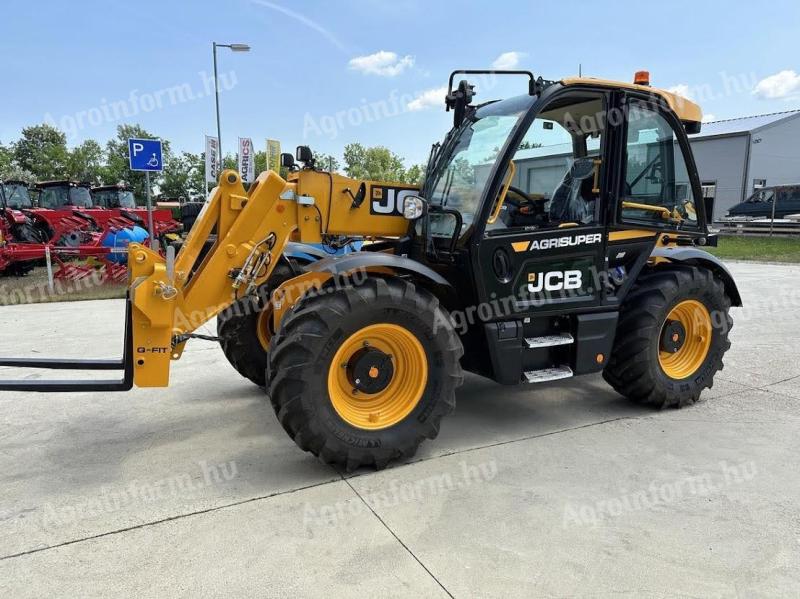

JCB 542-70 Telehandler
Information
Additional information
| Make | |
|---|---|
| Model | 542-70 |
| Weight | 8.3 t |
| Capacity | 4 t |
Equipment Overview
The JCB 542-70 is a diesel telehandler built for agricultural and general site work, part of JCB’s Series III Agri Loadall range alongside the 532-60, 532-70 and 536-95. It has a rated capacity of 4,000 kg and a maximum lift height of 7.01 m, with a forward reach of 3.82 m.
Power comes from JCB’s EcoMAX 4.4-litre four-cylinder diesel engine, producing 81 kW (109 hp) at 2,200 rpm and 516 N·m of torque at 1,500 rpm on the base specification, with 93 kW and 108 kW options available on higher trims. A JCB Powershift or Autoshift transmission with torque converter reaches a travel speed of 40 km/h, and four-wheel drive is standard for consistent traction.
Technical Specifications
| Specification | Value |
|---|---|
| Engine / Power Source | JCB EcoMAX 4.4L 4-cylinder turbocharged diesel |
| Power Output | 81 kW (109 hp) @ 2,200 rpm base (93 kW or 108 kW on higher trims) |
| Max Torque | 516 N·m @ 1,500 rpm (base engine) |
| Emission Standard | UN Stage 3 |
| Transmission | JCB Powershift or Autoshift: torque converter, 40 km/h |
| Drive Type | 4WD standard, electrical 2WD/4WD disconnect |
| Operating Weight | 8,300 kg |
| Lift Capacity | 4,000 kg |
| Max Lift Height | 7.01 m |
| Max Forward Reach | 3.82 m |
Dimensions
| Dimension | Value |
|---|---|
| Length (to front carriage) | 4.99 m |
| Width | 2.34 m |
| Height | 2.49 m |
| Wheelbase | 2.75 m |
| Turning Radius | 3.7 m |
Typical Applications
- Farm and agricultural material handling
- Loading and moving bales, feed and equipment
- General construction site material handling
- Livestock and yard work in confined spaces
