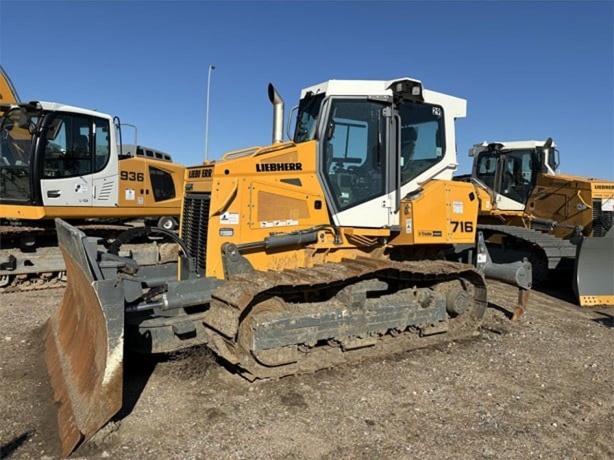

Liebherr PR716 Small Dozer

Information

Additional information

Make	Liebherr
Model	PR716
Weight	13 t

Equipment Overview

The Liebherr PR716 Litronic is a small dozer built for finish grading and general earthmoving, part of Liebherr’s Generation 8 crawler tractor range and the successor to the earlier Generation 6 PR 716. It puts out 132 hp (97 kW) and has an operating weight of 13,290 kg in XL configuration, suited to civil construction, utility, and site development work where a mid-size, hydrostatically driven dozer fits the job better than a larger track-type tractor.

Power comes from the Liebherr D 924 A7 four-cylinder diesel, rated at 132 hp (97 kW) net and up to 146 hp (107 kW) maximum, meeting Stage V and Tier 4f emission standards. An infinitely variable hydrostatic travel drive gives independent control of each track across three selectable speed ranges up to 10 km/h, delivering a maximum drawbar pull of 215 kN, and an open-center hydraulic system with a load-sensing valve block runs the standard single-joystick blade controls.

Technical Specifications

Specification	Value
Engine	Liebherr D 924 A7, 4.5 L, 4-cylinder turbocharged
Power Output	132 HP / 97 kW (net, ISO 9249 @ 2,100 rpm)
Emission Standard	Stage V / Tier 4f
Transmission	Infinitely variable hydrostatic
Drive Type	Hydrostatic, independent track control, 3 speed ranges
Operating Weight	13,290 kg (XL configuration, 560 mm shoes)
Max Travel Speed	10 km/h forward and reverse
Blade Capacity (ISO 9246)	2.92 m³ (6-way blade, XL)
Blade Width	3,145 mm (XL)
Ground Pressure	0.46 kg/cm² / 6.54 psi (XL)
ROPS / FOPS	EN ISO 3471 / EN ISO 3449

Dimensions

Dimension	Value
Overall Length (blade straight)	4,850 mm
Width Over Tracks (XL, 560 mm shoes)	2,340 mm
Height Over Cab	3,017 mm
Track Gauge	1,780 mm (XL)
Ground Clearance	443 mm
