Wacker Neuson DV90 Site Dumper
Information
Additional information
| Make | |
|---|---|
| Model | DV90 |
| Weight | 4.9t |
| Capacity | 9t |
Equipment Overview

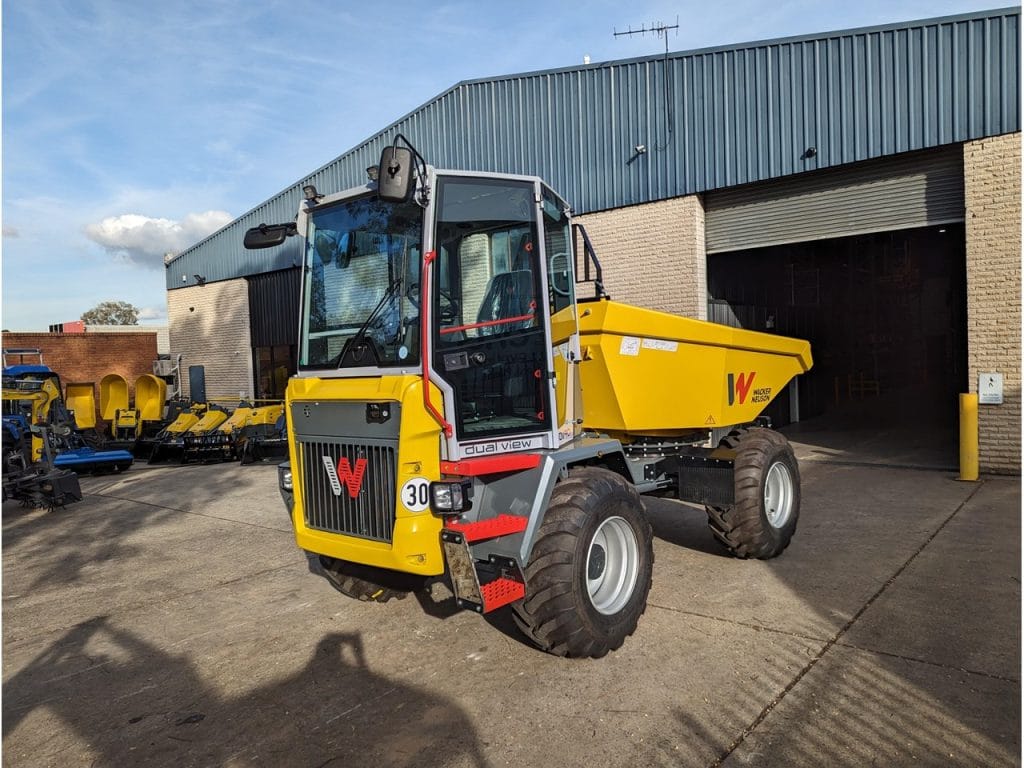

The Wacker Neuson DV90 is a site dumper built for construction site material handling, the larger partner to the DV60 in Wacker Neuson’s dual-view range. It carries a 9-tonne rated payload with a 3.75 m³ dump capacity, suited to larger civil works and construction sites needing truck-like safety without a full-size truck’s footprint or turning circle.
Power comes from a Deutz TD 2.9 four-cylinder diesel engine rated at 55.4 kW, driving a hydrostatic transmission through continuous four-wheel drive. The dual-view cab lets the operator rotate the seat and console 180 degrees, so they always face forward whether driving or tipping the skip, and the articulated pendulum joint keeps the machine stable across uneven ground. The DV90 reaches a top speed of 25 km/h, with a ROPS/FOPS Level II cab and standard heating and air conditioning for the operator.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Deutz TD 2.9, 4-cylinder diesel |
| Power Output | 55.4 kW |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Hydrostatic |
| Drive Type | Continuous 4WD, articulated pendulum joint |
| Operating Weight (Unladen) | 4,940 kg |
| Rated Payload | 9,000 kg |
| Body Capacity | 3.75 m³ |
| Max Travel Speed | 25 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Overall Length | 4,620 mm |
| Overall Width | 2,420 mm |
| Overall Height | 3,310 mm |
| Tyres | 500/60-22.5 |
Typical Applications
- Larger-scale construction site material haulage
- Civil earthworks requiring truck-like visibility
- Restricted-access sites needing a compact footprint
- Bulk material transfer on uneven or sloped terrain
