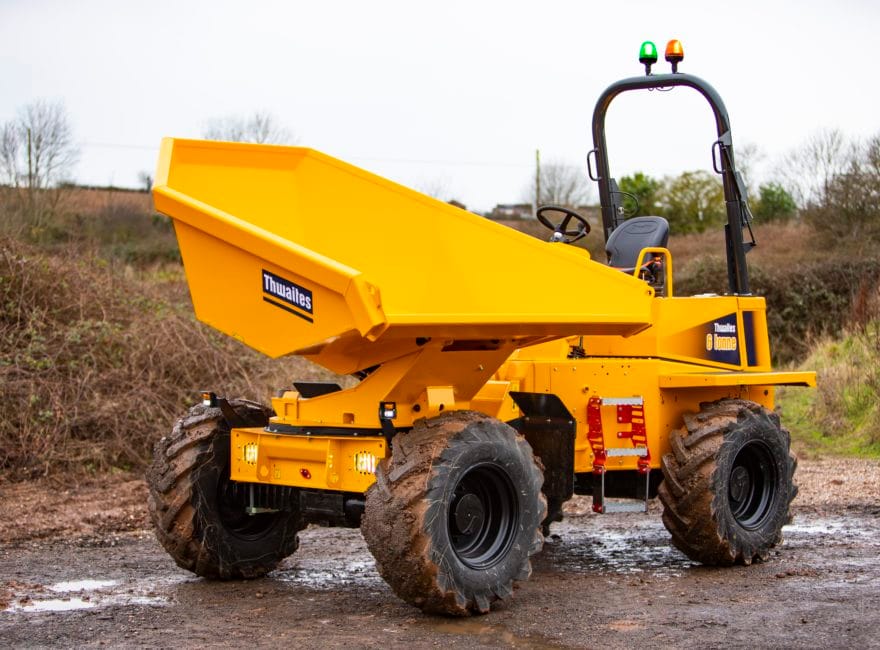

Thwaites 9T Site Dumper
Information
Additional information
| Make | |
|---|---|
| Model | 9T |
| Weight | 5.6 t |
| Capacity | 9 t |
Equipment Overview
The Thwaites 9T is a site dumper built for construction site material handling, the largest model in Thwaites’ range above the 3T and 6T. It carries a 9-tonne rated payload on a chassis with a 5,620 kg unladen weight and a 2,660 mm wheelbase, suited to large civil earthworks and construction sites needing maximum volume moved per trip across the site.
Power comes from a Perkins diesel engine rated at 110 hp, driving a four-speed powershift transmission to all four wheels. A foldable, certified ROPS frame protects the operator, and standard road lighting, a reverse alarm, and a rotating beacon suit both site and road use. The articulation and oscillation joint keeps all four wheels planted on uneven ground, and the wide, low-centre-of-gravity rear chassis maintains stability when the skip is fully loaded and tipping under load.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Perkins diesel |
| Power Output | 110 hp |
| Max Torque | NA |
| Emission Standard | NA |
| Transmission | Powershift, 4-speed |
| Drive Type | 4WD, articulation and oscillation joint |
| Operating Weight (Unladen) | 5,620 kg |
| Rated Payload | 9,000 kg |
| Body Capacity | NA |
| Max Travel Speed | NA |
Dimensions
| Dimension | Value |
|---|---|
| Overall Length | 5,047 mm |
| Overall Width | 2,435 mm |
| Overall Height (ROPS & Beacon) | 3,610 mm |
| Wheelbase | 2,660 mm |
Typical Applications
- Large-scale civil earthworks and construction haulage
- Maximum-volume material transfer per trip
- Groundworks on uneven or sloped terrain
- Site and road use with standard lighting and beacon fitted
