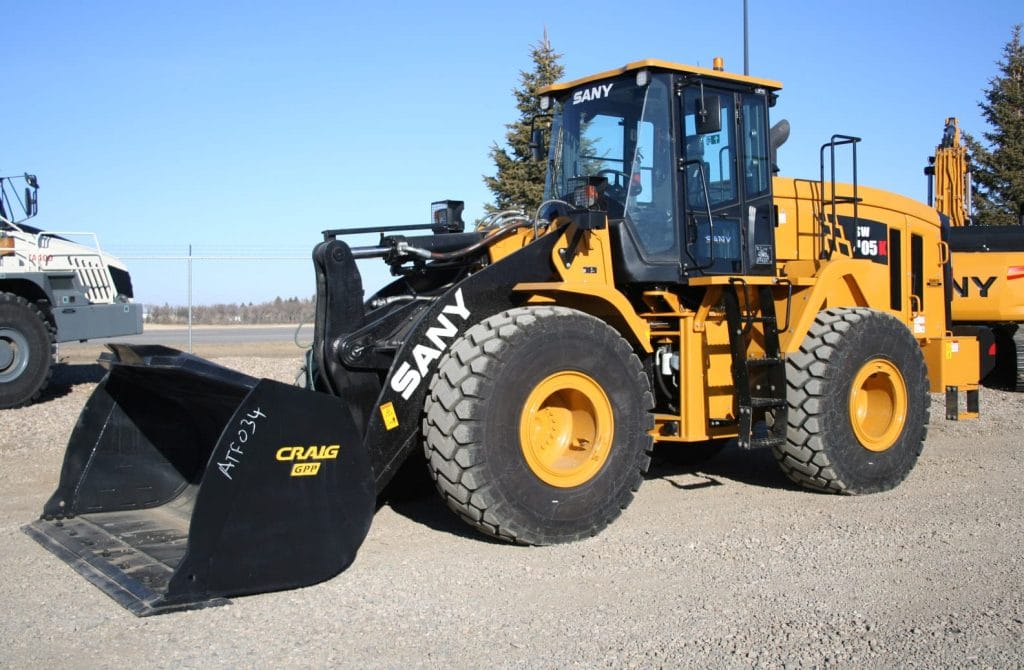

SANY SW405 Wheel Loader
Information
Additional information
| Make | |
|---|---|
| Model | SW405, SW405K |
| Weight | 19 t |
| Bucket | 3 m3 |
Equipment Overview
The SANY SW405 is a wheel loader built for power and reliability, featuring a robust heavy-duty frame design and strong breakaway forces. It delivers 195 kW and an 18,500 kg operating weight, suited to a wide range of wheel loader tasks with large tipping loads and quick loading and emptying cycles.
Power comes from a state-of-the-art seven-cylinder common rail Deutz diesel engine meeting Stage V emission standards, paired with a load-sensing main hydraulic pump from Rexroth including a third control circuit as standard. Z-kinematics deliver full power exactly where needed at the bucket, and an air-sprung Grammer operator’s seat with a high backrest gives premium-class comfort as standard.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Deutz, 7-cylinder common rail diesel |
| Power Output | 195 kW |
| Max Torque | NA |
| Emission Standard | Stage V |
| Transmission | Powershift |
| Drive Type | 4WD, articulated frame |
| Operating Weight | 18,500 kg |
| Bucket Capacity | 3.0 m³ |
| Breakout Force | NA |
| Static Tipping Load (straight) | 14,500 kg |
| Max Travel Speed | 40 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | 8,120 mm |
| Width | 2,200 mm |
| Height | 3,530 mm |
| Wheelbase | NA |
| Turning Radius | NA |
Typical Applications
- General construction and material handling
- Quarry and aggregate loading
- Truck loading and stockpiling
- Attachment-driven site work
