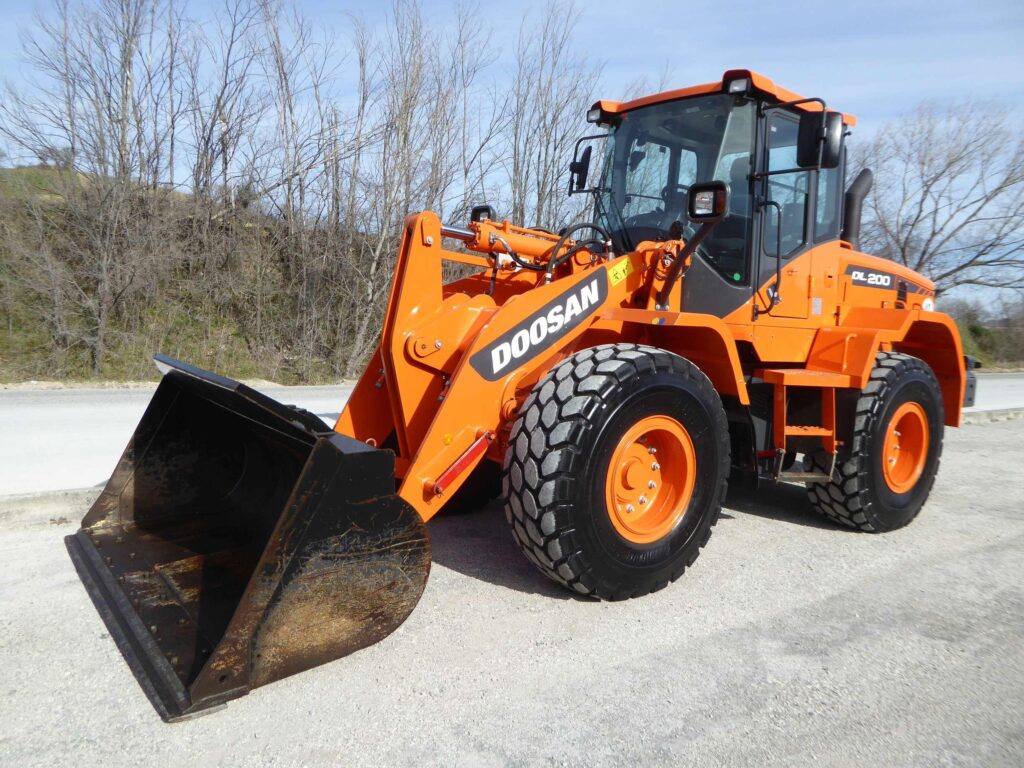

Doosan DL200 Wheel Loader
Information
Additional information
| Make | |
|---|---|
| Model | DL200 |
| Weight | 11t |
| Bucket | 3m3 |
Equipment Overview
The Doosan DL200 is a wheel loader built for construction, agriculture, and snow removal work, the entry point in Doosan’s current wheel loader range (marketed in Australia as the DL200A-7M under the Develon brand). It delivers 162 hp (121 kW) and an 11,300 kg operating weight, suited to general-purpose loading with a 2.0–4.0 m³ bucket capacity.
Power comes from a 4-cylinder Perkins diesel engine delivering 558 N·m of torque, driving a hydrostatic transmission (HST) for fuel efficiency, precise positional control, and reduced brake wear. Limited-slip differentials on both front and rear axles and a Z-bar loader linkage give strong traction and breakout force, with a high-lift option available for loading into high-sided trucks, hoppers, and mixers.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Perkins, 4-cylinder diesel |
| Power Output | 162 hp (121 kW) |
| Max Torque | 558 N·m |
| Emission Standard | NA |
| Transmission | Hydrostatic (HST) |
| Drive Type | 4WD, limited-slip differentials front and rear |
| Operating Weight | 11,300 kg |
| Bucket Capacity | 2.0–4.0 m³ |
| Breakout Force | NA |
| Static Tipping Load | NA |
| Max Travel Speed | 38 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | 7,208 mm |
| Width | 2,550 mm |
| Height | 3,313 mm |
| Wheelbase | NA |
| Turning Radius | 5,849 mm (outside) |
Typical Applications
- General construction and material handling
- Agricultural loading work
- Snow removal
- Truck and hopper loading
