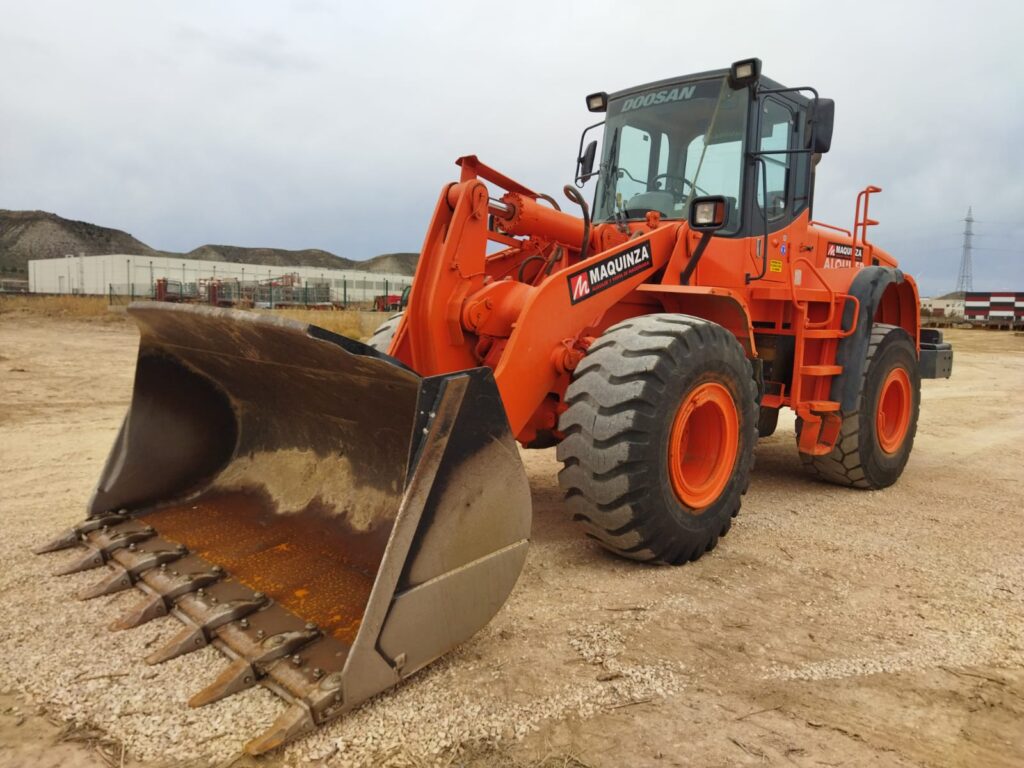

Doosan DL300 Wheel Loader
Information
Additional information
| Make | |
|---|---|
| Model | DL300 |
| Weight | 17t |
| Bucket | 3m3 |
Equipment Overview
The Doosan DL300 is a wheel loader built for construction and material handling work, positioned above the DL250 in Doosan’s wheel loader range. It delivers 202 kW (271 hp) and a 17,300 kg operating weight, suited to jobs needing a 3.0 m³ bucket capacity and strong lifting performance.
Power comes from a Tier 4 Interim diesel engine using SCR with diesel exhaust fluid, with an auto-idle feature that reduces working idle from 950 rpm to a standby idle of 750 rpm when the machine is inactive. Operators can set upper and lower limits for both the lift arm and bucket stop positions, and a new automatic-reversing cooling fan uses less power to keep the machine clean and clear of debris.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Diesel, Tier 4 Interim, SCR/DEF |
| Power Output | 202 kW (271 hp) |
| Max Torque | NA |
| Emission Standard | Tier 4 Interim |
| Transmission | Automatic powershift |
| Drive Type | 4WD, optional hydraulic locking front differential |
| Operating Weight | 17,300 kg |
| Bucket Capacity | 3.0 m³ |
| Breakout Force | 16,522 kg |
| Static Tipping Load | NA |
| Max Travel Speed | 34 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | 8,150 mm |
| Width | 2,920 mm |
| Height | 3,440 mm |
| Wheelbase | NA |
| Turning Radius | 6,360 mm (outside) |
Typical Applications
- General construction and material handling
- Truck and hopper loading
- Site preparation and earthworks
- Stockpile work
