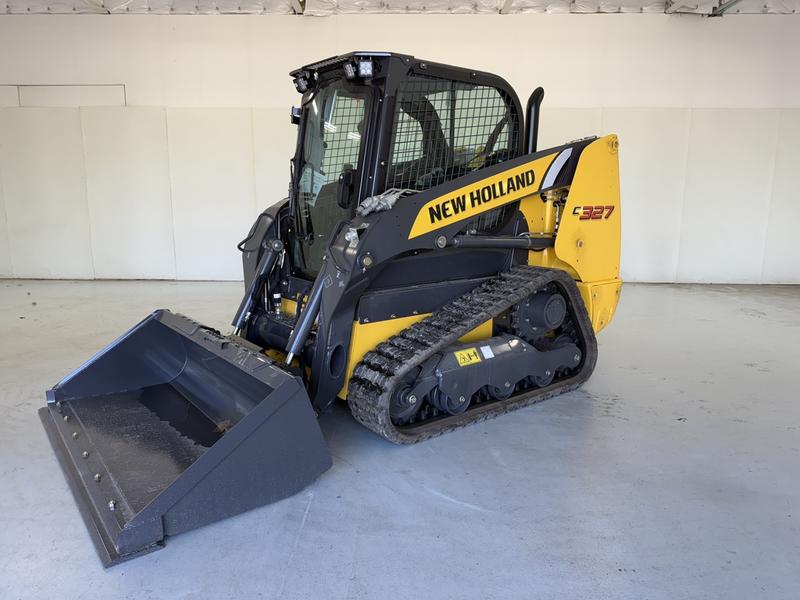

New Holland C327 Posi-Track Loader
Information
Additional information
| Make | |
|---|---|
| Model | C327 |
| Weight | 3.8 t |
| Capacity | 1.2 t |
| Power | 74 hp |
Equipment Overview
The New Holland C327 is a compact track loader built for construction and agricultural work, part of New Holland’s 300 Series compact track loader range. It delivers 74 hp (55 kW) from an FPT diesel engine and a 1,225 kg rated operating capacity, suited to heavy-duty construction and agricultural tasks needing strong lift-and-carry performance.
Power comes from an FPT F5C E5456 diesel engine delivering 275 N·m of peak torque, meeting Tier IV emission standards and driving a radial-lift boom through a hydrostatic transmission. New Holland’s patented SuperBoom design gives best-in-class dump height and reach for loading to the centre of a truck bed, and a low-profile undercarriage with 203 mm ground clearance eases cleanout and reduces noise.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | FPT F5C E5456, diesel, 3.2 L |
| Power Output | 74 hp (55 kW) gross; 68 hp (51 kW) net |
| Max Torque | 275 N·m @ 1,400 rpm |
| Emission Standard | Tier IV |
| Drive Type | Hydrostatic track drive |
| Operating Weight | 3,750 kg |
| Rated Operating Capacity (50%) | 1,225 kg |
| Tipping Load | 2,449 kg |
| Auxiliary Hydraulic Flow | 85 L/min standard (117 L/min high-flow), 210 bar |
| Max Travel Speed | 8.9 km/h low (12.9 km/h high) |
Dimensions
| Dimension | Value |
|---|---|
| Length | NA |
| Width | NA |
| Height | NA |
| Wheelbase | NA |
| Turning Radius | NA |
Typical Applications
- Heavy-duty construction and site work
- Agricultural material handling
- Truck loading needing extra reach and dump height
- Attachment-driven landscaping and grading
