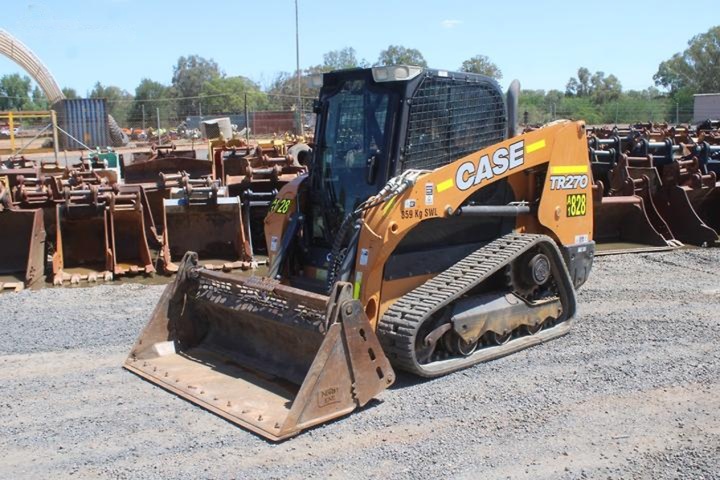

CASE TR270 Posi-Track Loader
Information
Additional information
| Make | |
|---|---|
| Model | TR270 |
| Weight | 3.8 t |
| Capacity | 1.2 t |
| Power | 74 hp |
Equipment Overview
The CASE TR270 is a compact track loader built for landscaping and light construction work, the entry point in CASE’s current B Series compact track loader range. It delivers 74 hp (55 kW) from an FPT diesel engine and a 1,225 kg rated operating capacity, suited to turf-sensitive sites needing low ground pressure alongside strong lift and breakout force.
Power comes from an FPT F5H FL463 turbocharged diesel engine meeting Tier 4 Final emission standards without a diesel particulate filter, delivering 314 N·m of peak torque through a 2-speed hydrostatic four-wheel drive system. A radial-lift boom geometry and a 91.5 L/min auxiliary hydraulic circuit suit the TR270 to grading, pallet work, and attachment-driven jobs close to the machine.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | FPT F5H FL463, 4-cylinder turbo diesel, 3.4 L |
| Power Output | 74 hp (55 kW) gross; 68 hp (51 kW) net |
| Max Torque | 314 N·m |
| Emission Standard | Tier 4 Final |
| Drive Type | 2-speed hydrostatic, four-wheel drive (track) |
| Operating Weight | 3,750 kg |
| Rated Operating Capacity (SAE) | 1,225 kg |
| Tipping Load | 2,450 kg |
| Auxiliary Hydraulic Flow | 91.5 L/min (210 bar); 122.6 L/min high-flow optional |
| Max Travel Speed | 8.2 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | 3,280 mm (bucket on ground) |
| Width | 1,360 mm (without bucket) |
| Height | 2,000 mm (top of cab) |
| Wheelbase | 1,420 mm (track on ground) |
| Turning Radius | NA |
Typical Applications
- Landscaping and turf-sensitive site work
- Grading and below-grade digging
- Pallet and material handling
- Trailer-side loading in tight spaces
