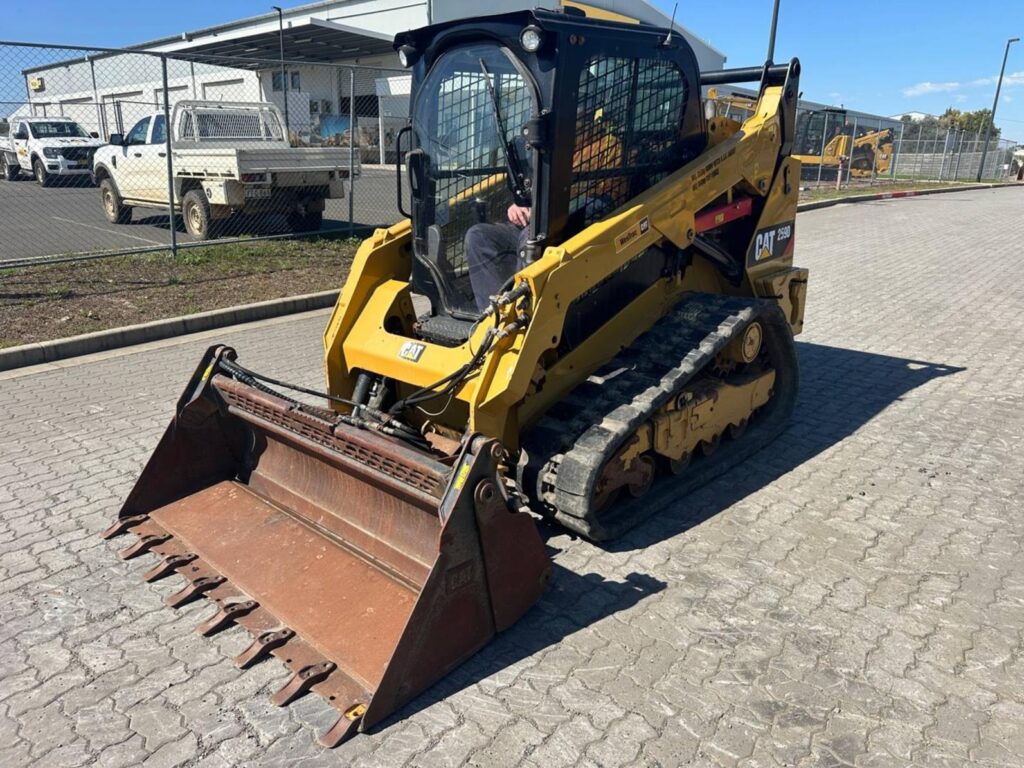

CAT 259D Posi-Track Loader
Information
Additional information
| Make | |
|---|---|
| Model | 259B, 259B3, 259D, 259D LRC, 259D3 |
| Weight | 4 t |
| Capacity | 0.9 t |
| Power | 74.3 hp |
Equipment Overview
The Cat 259D is a compact track loader built for material handling and truck loading work, a vertical-lift model in Caterpillar’s D Series compact track loader range positioned above the 249D. It delivers 55.4 kW (74.3 hp) of gross power and a 921 kg rated operating capacity, suited to jobs needing extended reach and lift height with more muscle than the smaller D Series models.
Power comes from a Cat C3.3B turbocharged diesel engine meeting U.S. EPA Tier 4 Final and EU Stage IIIB emission standards, driving a suspended, steel-embedded rubber track undercarriage through a two-speed hydrostatic transmission. The vertical-lift boom geometry gives extended reach and lift height for quick truck loading, and a standard 76 L/min hydraulic circuit (112 L/min with optional High Flow) powers Cat’s full range of work tools.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cat C3.3B, turbo diesel |
| Power Output | 55.4 kW (74.3 hp) gross; 54.6 kW (73.2 hp) net |
| Max Torque | NA |
| Emission Standard | US EPA Tier 4 Final; EU Stage IIIB |
| Drive Type | 2-speed hydrostatic, suspended track undercarriage |
| Operating Weight | 4,013 kg |
| Rated Operating Capacity (35%) | 921 kg |
| Tipping Load | 2,631 kg |
| Auxiliary Hydraulic Flow | 76 L/min standard (112 L/min High Flow optional) |
| Max Travel Speed | 9.5 km/h (13.7 km/h with 2-speed) |
Dimensions
| Dimension | Value |
|---|---|
| Length | 3,486 mm (bucket on ground) |
| Width | 1,676 mm (320 mm tracks) |
| Height | 2,111 mm (top of cab) |
| Wheelbase | 1,499 mm (track on ground) |
| Turning Radius | 1,561 mm (from centre, machine rear) |
Typical Applications
- Truck loading and material handling
- General construction and site preparation
- Attachment-driven work needing extra power
- Pallet and stockpile work
