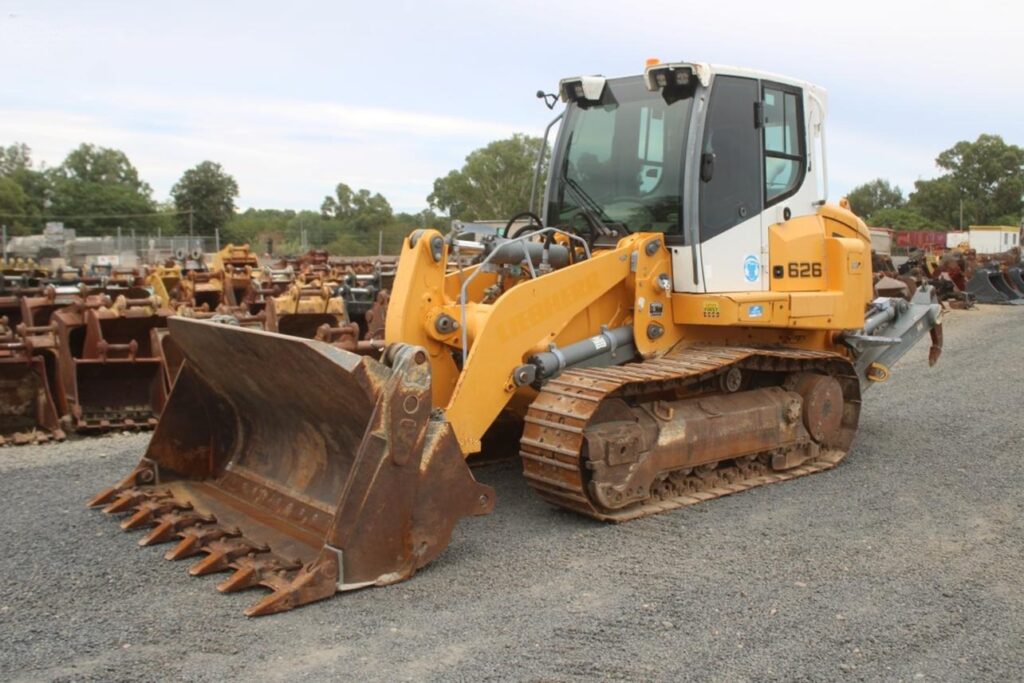

Liebherr LR626 Track Loader

Information

Additional information

Make	Liebherr
Model	LR626
Weight	17 t
Bucket	1.8 m3

Equipment Overview

The Liebherr LR626 is a crawler loader built for material handling, digging, and dozing work, the current Generation 8 model in Liebherr’s crawler loader range alongside the larger LR636. It delivers 110 kW (150 hp) of net power and a 16,460–19,360 kg operating weight, suited to landscaping, waste handling, and construction sites needing strong traction on soft or uneven ground.

Power comes from a Liebherr D 924-A7 diesel engine meeting Stage V and EPA Tier 4 Final emission standards, driving a hydrostatic travel system with independent track control for precise steering, including turning on the spot. The LUDV load-sensing hydraulic system harmonises simultaneous lift and tilt movements for faster work cycles, and Eco-Mode lowers engine speed to cut fuel consumption in light to medium duty work.

Technical Specifications

Specification	Value
Engine	Liebherr D 924-A7, 4-cylinder diesel, turbocharged
Power Output (net)	110 kW (150 hp, ISO 9249)
Max Torque	NA
Emission Standard	Stage V; EPA Tier 4 Final
Drive Type	Hydrostatic, independent track control
Operating Weight	16,589 kg (standard bucket; 16,460–19,360 kg across configurations)
Bucket Capacity	1.8 m³ (standard, ISO 7546)
Ground Pressure	57.9 kPa (8.56 psi)
Max Travel Speed	10.0 km/h (top speed range)

Dimensions

Dimension	Value
Length	6,523 mm (bucket on ground, with rear bumper)
Width	2,248 mm (508 mm track shoes)
Height	3,160 mm (over cab)
Wheelbase	2,450 mm (idler/sprocket centre distance)
Turning Radius	NA
