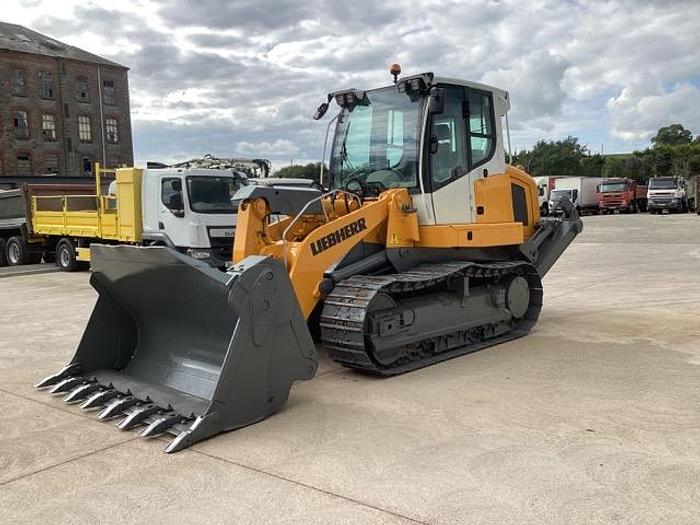

Liebherr LR624 Track Loader

Information

Additional information

Make	Liebherr
Model	LR624
Weight	17 t
Bucket	1.8 m3

Equipment Overview

The Liebherr LR624 is a crawler loader built for material handling, digging, and dozing work, a Generation 4 model in Liebherr’s crawler loader range superseded by the LR626 in 2017. It delivers 105 kW (143 hp) of net power and a 17,006 kg operating weight, suited to construction, landfill, and earthmoving sites needing strong traction on soft or uneven ground.

Power comes from a Liebherr D934 diesel engine meeting Stage IIIA and EPA Tier 3 emission standards, driving a closed-loop hydrostatic travel system with independent control of each track for precise steering, including turning on the spot. A solid Z-kinematics lift linkage gives high break-out forces, and Landfill, Tunnelling, Forestry, and Low Ground Pressure equipment variants extend the LR624 into specialised applications.

Technical Specifications

Specification	Value
Engine	Liebherr D934 S A6, 4-cylinder diesel, turbocharged
Power Output (net)	105 kW (143 hp, ISO 9249)
Max Torque	NA
Emission Standard	Stage IIIA; EPA Tier 3
Drive Type	Hydrostatic, independent track control
Operating Weight	17,006 kg (standard bucket)
Bucket Capacity	1.8 m³ (standard, ISO 7546)
Ground Pressure	65.7 kPa (9.53 psi)
Max Travel Speed	10.0 km/h (travel range)

Dimensions

Dimension	Value
Length	6,337 mm (bucket on ground, with rear bumper)
Width	2,248 mm (508 mm track shoes)
Height	3,150 mm (over cab)
Wheelbase	2,483 mm (idler/sprocket centre distance)
Turning Radius	NA
