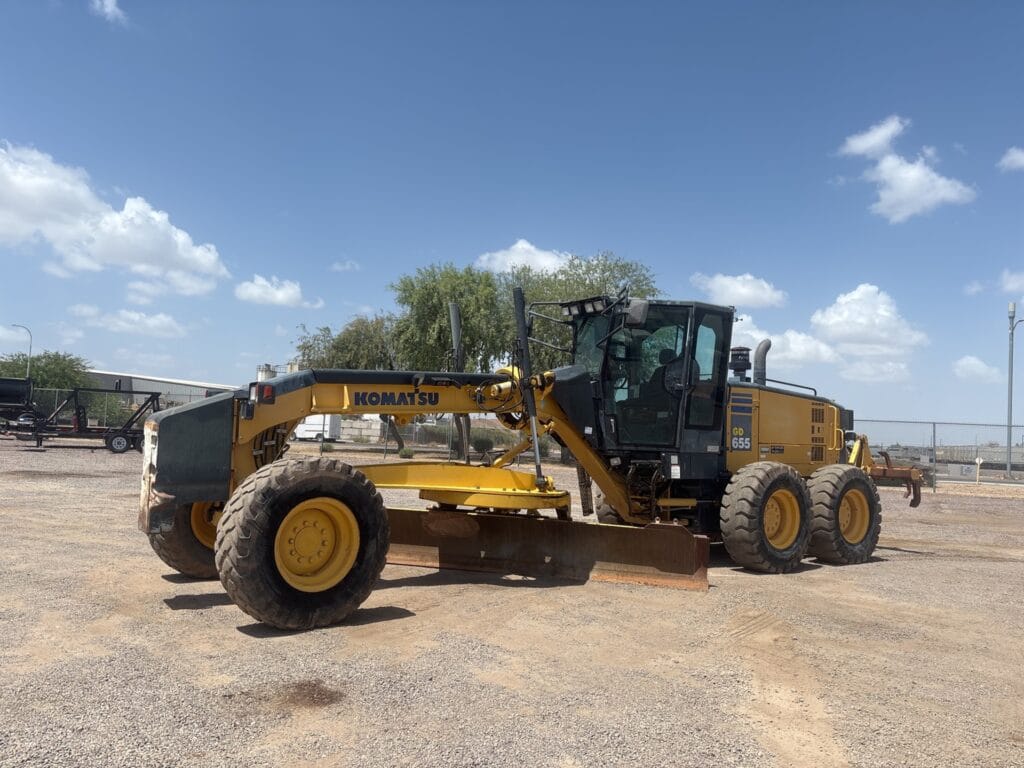

Komatsu GD655 Motor Grader
Information
Additional information
| Make | |
|---|---|
| Model | GD655, GD655-5 |
| Weight | 20 t |
| Blade | 14 ft |
Equipment Overview
The Komatsu GD655 is a motor grader built for road construction, maintenance and quarry work, part of Komatsu’s grader range alongside the smaller GD555. It runs a 4.27 m (14 ft) moldboard as standard, weighs around 20.2 tonnes typically equipped, and produces up to 163 kW (218 hp), suited to council road work, civil earthworks and haul road maintenance on quarry and mine sites.
Power comes from a Komatsu SAA6D107E-3 engine, meeting Tier 4 Final emissions standards. Komatsu’s dual-mode transmission combines full power shift with a torque converter and lock-up clutch, automatically stepping in to prevent stalling under heavy load, while the hexagonal cab gives a clear view of the moldboard and front tyres.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Komatsu SAA6D107E-3 |
| Power Output | 134-163 kW (180-218 hp) |
| Max Torque | 941 N·m |
| Emission Standard | Tier 4 Final |
| Transmission | Dual-mode full power shift with lock-up torque converter, 8F/4R |
| Drive Type | Tandem rear-wheel drive |
| Operating Weight | 20,200 kg (44,530 lb) |
| Moldboard Width | 4.27 m (14 ft) |
| Max Depth of Cut | 615 mm |
| Max Lift Above Ground | 480 mm |
Dimensions
| Dimension | Value |
|---|---|
| Length | 10,875 mm |
| Width | 2,630 mm |
| Height | 3,200 mm |
| Turning Radius | 7.4 m |
Typical Applications
- Road construction and resheeting
- Council and shire road maintenance
- Quarry and mine haul road upkeep
- Civil and subdivision site preparation
- Table drain and ditch maintenance
