John Deere 770 Motor Grader
Information
Additional information
| Make | |
|---|---|
| Model | 770, 770D, 770G, 770GP |
| Weight | 20t |
| Blade | 14ft |
Equipment Overview

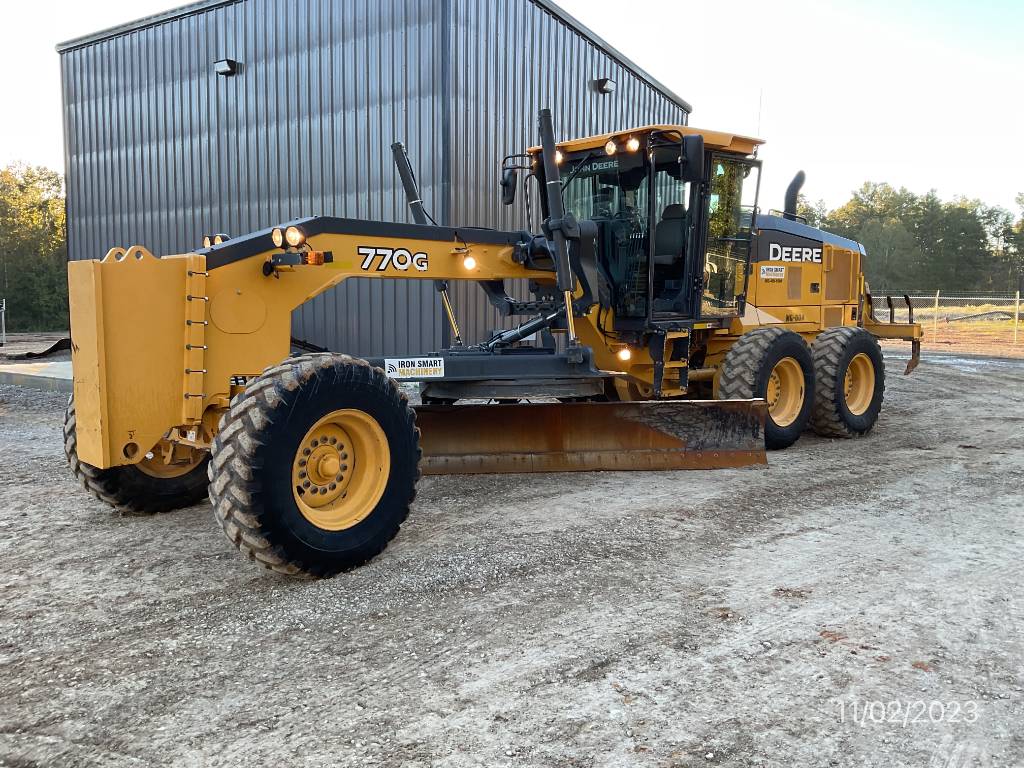

The John Deere 770 is a motor grader built for road construction, maintenance and general civil grading, part of Deere’s G-Series grader line-up. It weighs around 19,638 kg typically equipped and produces up to 190 kW (255 hp), suited to council road work, rural access tracks and general construction sites.
Power comes from a John Deere PowerTech engine, delivering a 54 percent torque rise for consistent pulling power as load increases. Tandem rear-wheel drive keeps the machine straightforward to operate and service, while fingertip or joystick controls and an Eco mode that trims engine rpm in the lower gears help cut fuel use on lighter grading work.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | John Deere PowerTech |
| Power Output | 190 kW (255 hp) |
| Transmission | Power shift |
| Drive Type | Tandem rear-wheel drive |
| Operating Weight | 19,638 kg (43,294 lb) |
| Blade Pull | 15,501 kg (34,173 lb) |
| Torque Rise | 54% |
Dimensions
| Dimension | Value |
|---|---|
| Length | 8,890 mm |
| Width | 2,640 mm |
| Height | 3,180 mm |
Typical Applications
- Council and shire road maintenance
- Rural and unsealed access road upkeep
- Subdivision and civil site preparation
- Building pad and driveway grading
- Table drain and ditch maintenance
