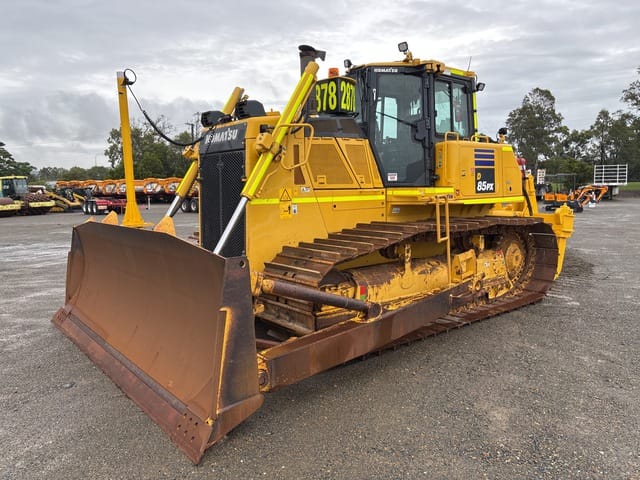

Komatsu D65PX LGP Swamp Dozer
Information
Additional information
| Make | |
|---|---|
| Model | D65PX LGP, D65PX-17 LGP, D65PX-18 LGP |
| Weight | 23 t |
Equipment Overview
The Komatsu D65PX-18 is a low ground pressure dozer built for grading and earthmoving on soft or wet ground, part of Komatsu’s -18 series crawler dozer range for the Australian and New Zealand market. It has 162 kW (217 hp) of net power, an operating weight of 22,830 kg, and a 3.7 m³ straight tilt blade in standard configuration, suited to soft, wet, or unstable ground where its long-track, low-ground-pressure undercarriage delivers outstanding flotation.
Power comes from the Komatsu SAA6D114E-6 engine, a 6-cylinder, 8.85-litre unit built to U.S. EPA Tier 4 Final and EU Stage V emission standards, using a combined SCR and diesel particulate filter aftertreatment system. A hydrostatic steering system (HST) transmits power to both tracks for smooth, powerful turns and a 2.2 m minimum turning radius, and the Parallel Link Undercarriage System (PLUS) uses rotating bushings to cut undercarriage maintenance costs by up to 40%. The wide 915 mm shoes keep ground pressure to 29.6 kPa.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Komatsu SAA6D114E-6, 8.85 L, 6-cylinder, turbocharged, air-to-air aftercooled |
| Power Output | 162 kW / 217 hp (net, ISO 9249/SAE J1349 @ 1,950 rpm) |
| Emission Standard | U.S. EPA Tier 4 Final / EU Stage V |
| Transmission | Komatsu TORQFLOW (lock-up torque converter with planetary gear, multiple-disc clutch), 3F/3R |
| Drive Type | Hydrostatic Steering System (HST), no steering clutches or brakes; PCCS joystick control |
| Operating Weight | 22,830 kg (D65PX-18, straight tilt blade, 915 mm PLUS shoes) |
| Blade Capacity | 3.7 m³ (straight tilt, standard) |
| Blade Width | 3,970 mm (straight tilt, standard) |
| Ground Pressure | 29.6 kPa (with dozer and ROPS cab) |
| ROPS / FOPS | ISO 3471 / ISO 3449 |
Dimensions
| Dimension | Value |
|---|---|
| Overall Length (with blade) | 5,680 mm |
| Width | 2,050 mm (track gauge) |
| Height | 3,160 mm |
| Track Gauge | 2,050 mm |
| Ground Clearance | 415 mm |
Typical Applications
- Wetland, swamp, and soft-ground earthmoving
- Landfill and waste site grading (low ground pressure)
- Sand and unstable soil earthworks
- Fine grading with intelligent Machine Control (iMC) variant
- Utility corridor and pipeline right-of-way work on soft ground
