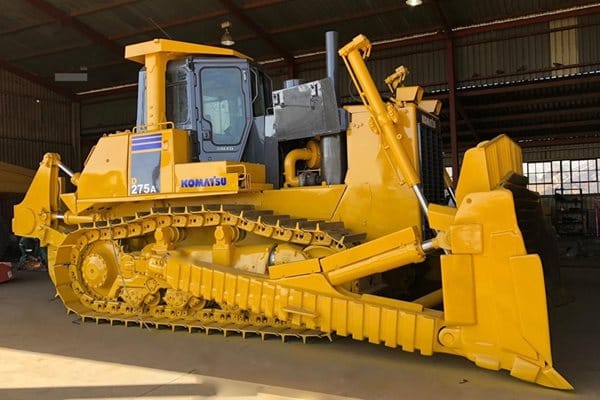

Komatsu D275AX Large Dozer
Information
Additional information
| Make | |
|---|---|
| Model | D275AX, D275AX-5EO |
| Weight | 52 t |
Equipment Overview
The Komatsu D275AX is a large dozer built for heavy construction, mining, and infrastructure work, part of Komatsu’s D275 large dozer family for the Australian and New Zealand market. It has 335 kW (449 hp) of net power, an operating weight of 51,530 kg, and a 14.6 m³ SIGMADOZER blade in standard configuration, suited to waste management, heavy civil earthworks, and applications requiring powerful dozing and ripping.
Power comes from the Komatsu SAA6D140E-5 engine, which meets EPA Tier 3 and EU Stage 3A emission standards. A Hydrostatic Steering System (HSS) delivers smooth, quick, and powerful directional control, and the transmission automatically engages torque converter lock-up once up to speed, transmitting engine power directly for efficiencies close to a direct drive, while an auto-downshift function drops to the optimum gear whenever load increases. The K-Bogie undercarriage oscillates on two fulcrums to keep track rollers in constant contact with the track link, reducing impact loads.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Komatsu SAA6D140E-5, turbocharged, aftercooled |
| Power Output | 335 kW / 449 hp (net @ 2,000 rpm); 337 kW / 452 hp gross |
| Emission Standard | EPA Tier 3 / EU Stage 3A |
| Transmission | Automatic, with torque converter lock-up and auto-downshift |
| Drive Type | Hydrostatic Steering System (HSS), K-Bogie undercarriage |
| Operating Weight | 51,530 kg |
| Blade Capacity | 14.6 m³ (SIGMADOZER, standard) |
| Ground Pressure | 119 kPa (1.21 kgf/cm²) (SIGMADOZER, giant ripper) |
| ROPS / FOPS | ISO 3471 / ISO 3449 |
Dimensions
| Dimension | Value |
|---|---|
| Overall Length | 6,665 mm (Strengthened SIGMADOZER, giant ripper) |
| Width | 4,440 mm (SIGMADOZER blade width) |
| Height | 3,990 mm |
| Track Gauge | 2,260 mm |
| Ground Clearance | 507 mm |
Typical Applications
- Heavy civil construction and infrastructure earthworks
- Waste management and landfill site work
- Mine site production dozing and ripping
- Large-scale stockpile management
- Quarry and aggregate face maintenance
