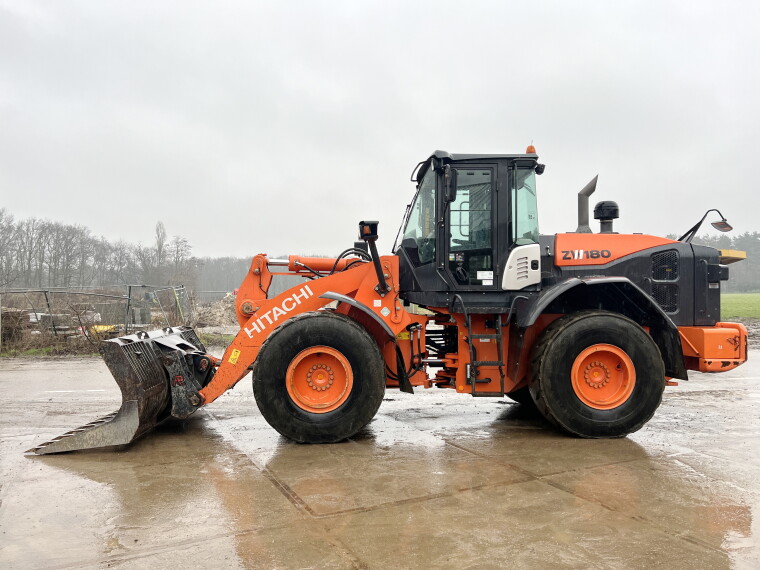

Hitachi ZW180 Wheel Loader
Information
Additional information
| Make | |
|---|---|
| Model | ZW180 |
| Weight | 15 t |
| Bucket | 2.7 m3 |
Equipment Overview
The Hitachi ZW180 is a wheel loader built for construction and material handling work, current in Hitachi’s ZW wheel loader range as the ZW180-7. It delivers 129 kW (173 hp) and a 14,950–15,270 kg operating weight, suited to a wide range of applications with a choice of standard, high, and parallel lift arms.
Power comes from a Cummins B6.7 engine delivering 1,104 N·m of gross torque, meeting EU Stage V emission standards and driving a torque converter countershaft powershift transmission with computer-controlled automatic and manual shift modes. The ZW180-7 is built with safety in mind, featuring an Aerial Angle camera and rear obstacle detection and warning systems for superb visibility from the cab.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cummins B6.7, 6-cylinder, 6.69 L |
| Power Output | 129 kW (173 hp) |
| Max Torque | 1,104 N·m gross @ 1,100 rpm |
| Emission Standard | EU Stage V |
| Transmission | Torque converter, countershaft powershift, 5-speed |
| Drive Type | 4WD, articulated frame |
| Operating Weight | 14,950–15,270 kg |
| Bucket Capacity | 2.4–3.0 m³ |
| Breakout Force | 13,010 kg (standard arm) |
| Static Tipping Load (straight) | 12,570 kg (standard arm) |
| Max Travel Speed | 39 km/h |
Dimensions
| Dimension | Value |
|---|---|
| Length | 6,725 mm (standard arm, without bucket) |
| Width | NA |
| Height | 3,310 mm (top of cab) |
| Wheelbase | NA |
| Turning Radius | 5,235 mm (centreline of outside tyre) |
Typical Applications
- General construction and material handling
- Truck and hopper loading
- Site preparation and earthworks
- Pallet and fork handling (with parallel-lift arm)
