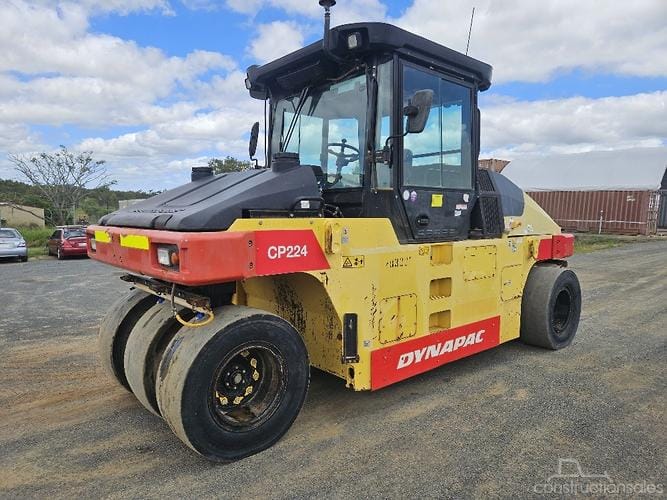

Dynapac CP224 Multi Tyre Roller
Information
Additional information
| Make | |
|---|---|
| Model | CP224, CP224W |
| Weight | 9.5 t |
Equipment Overview
The Dynapac CP224 is a pneumatic tyre roller built for asphalt compaction, with a 1,800 mm rolling width. It has an operating weight of 9,500 kg (up to 21,000 kg ballasted), suited to medium-to-large paving jobs with a spacious operator platform and operator-friendly controls.
Power comes from a Cummins QSB 3.3 diesel engine meeting Tier III emissions, driving all wheels for consistent traction. The machine reaches a top speed of 23 km/h and has an outside turning radius of 7,994 mm, with a thermostatically controlled cooling fan to manage engine temperature across varied conditions.
Technical Specifications
| Specification | Value |
|---|---|
| Engine | Cummins QSB 3.3 |
| Power Output | NA |
| Max Torque | NA |
| Emission Standard | US EPA Tier 3 |
| Transmission | NA |
| Drive Type | All-wheel drive |
| Operating Weight | 9,500 kg |
| Compaction Width | 1,800 mm |
| Ballast Range | 9,500 – 21,000 kg |
Dimensions
| Dimension | Value |
|---|---|
| Length | 5,100 mm |
| Width | 2,000 mm |
| Height | 3,000 mm |
| Wheelbase | NA |
| Turning Radius | 7,994 mm (outside) |
Typical Applications
- Medium-to-large road construction and resurfacing projects
- Highway and arterial road paving
- Asphalt surface sealing and finishing
- Base and sub-base compaction
